Conductive Hook and Loop Strap





The Conductive Hook and Loop Strap is a specialized fastening solution designed for use in Electrostatic Protected Areas (EPAs), ensuring safe and secure bundling of sensitive electronic components without generating static electricity. Below is a concise breakdown of its key aspects:



Key Features:


Material:

Strap: Antistatic nylon with conductive yarn

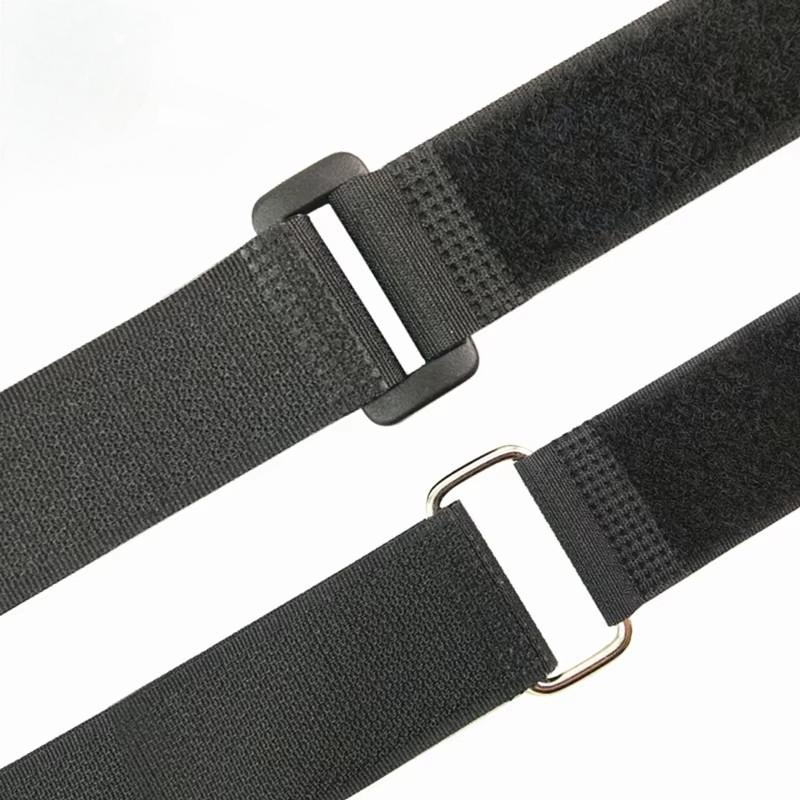

Buckle: Non-static generating plastic



Color: Standard black



Size: 500mm (length) × 25mm (width) (±10% tolerance)

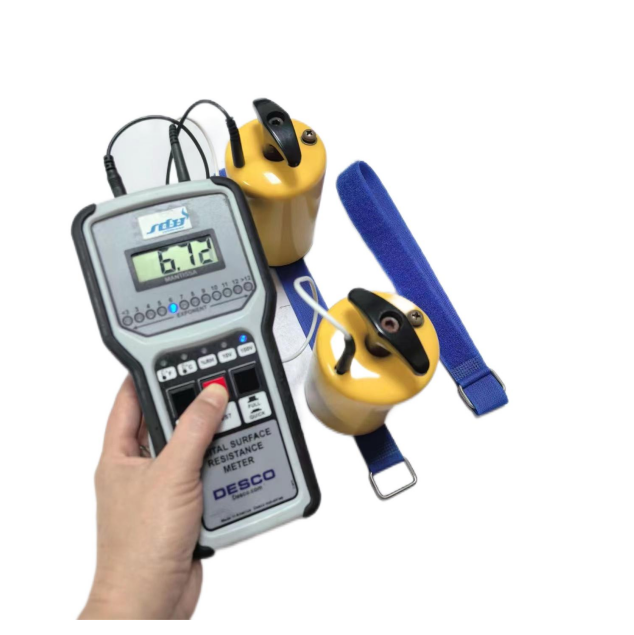

Conductivity: Surface resistance <10⁶ Ω (per IEC-61340-5-1)



Static-Safe: Prevents ESD (electrostatic discharge) risks in EPAs



Hook & Loop Design: Self-adhesive for easy application and reusability



Compliance: Meets IEC-61340-5-1 (ESD protection standard)



Applications:

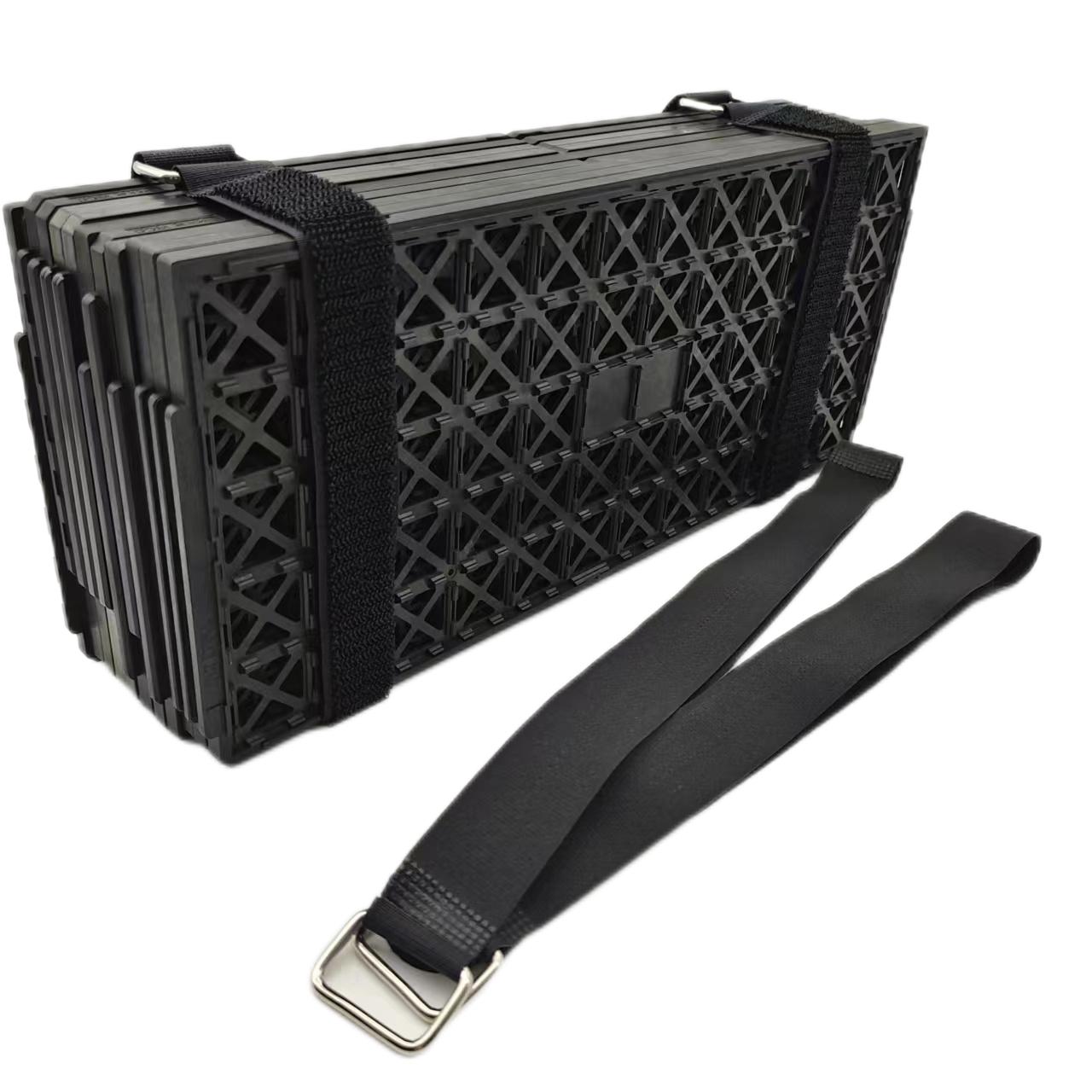

✔ Securing DIP/IC tubes, JEDEC trays, and small boxes in EPAs



✔ Bundling individual packages without static hazards



✔ Organizing components in electronics manufacturing, labs, or cleanrooms



Advantages:



Non-static generating – Safe for sensitive electronics



Reusable & Adjustable – Hook-and-loop allows flexible fastening



Durable – Conductive yarn ensures long-term ESD protection



Technical Specifications:


Material Nylon + conductive yarn, metal  buckle



Dimensions 500mm × 25mm (±10%)



Resistance <1,000,000 Ω (per IEC-61340-5-1)



Color :Black



Compliance IEC-61340-5-1 (ESD standard)



Ideal For:



ESD-sensitive environments (electronics assembly, semiconductor handling)



Secure bundling without tape or static-prone materials



Reusable strapping for organized storage & transport



This strap provides a simple, effective, and ESD-safe alternative to traditional bundling methods in static-controlled environment
