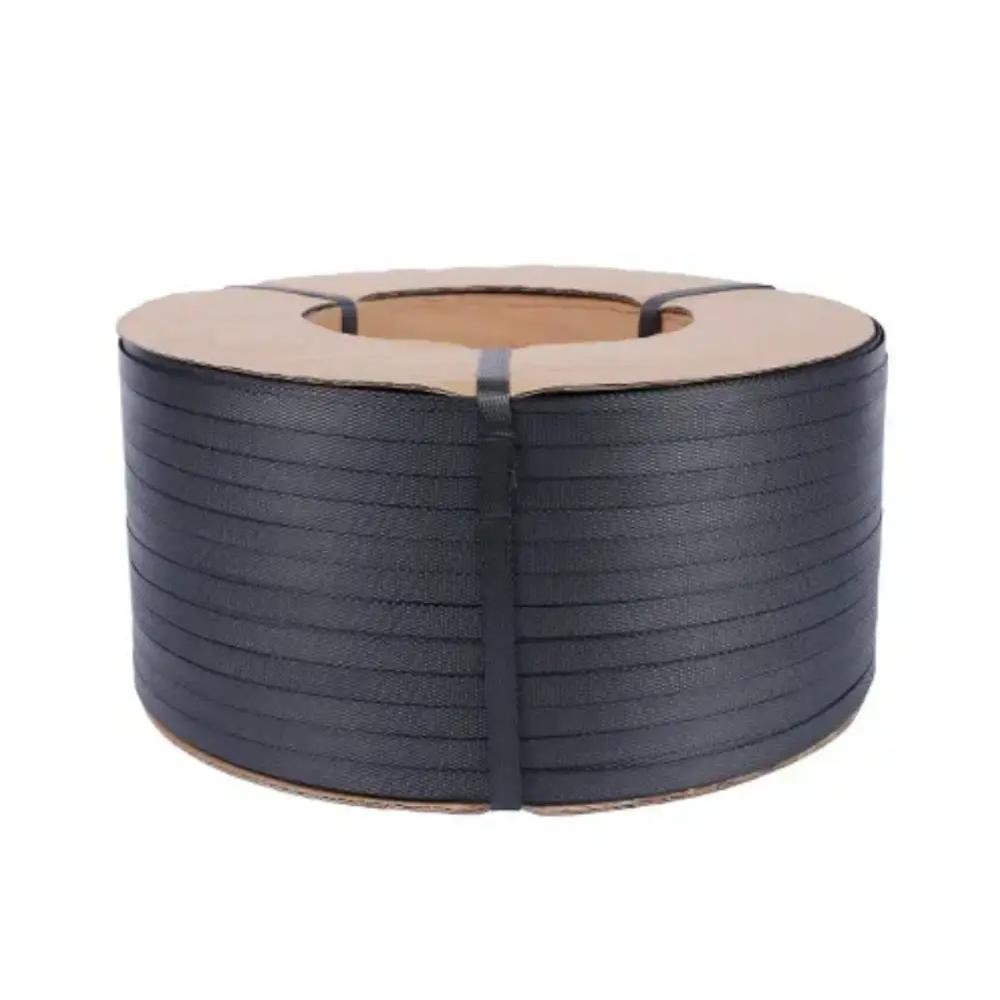

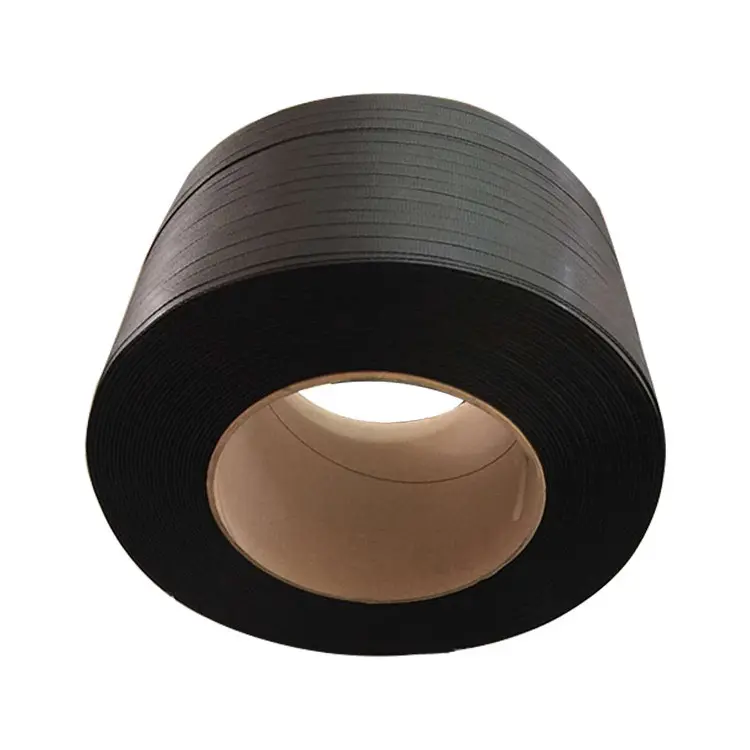

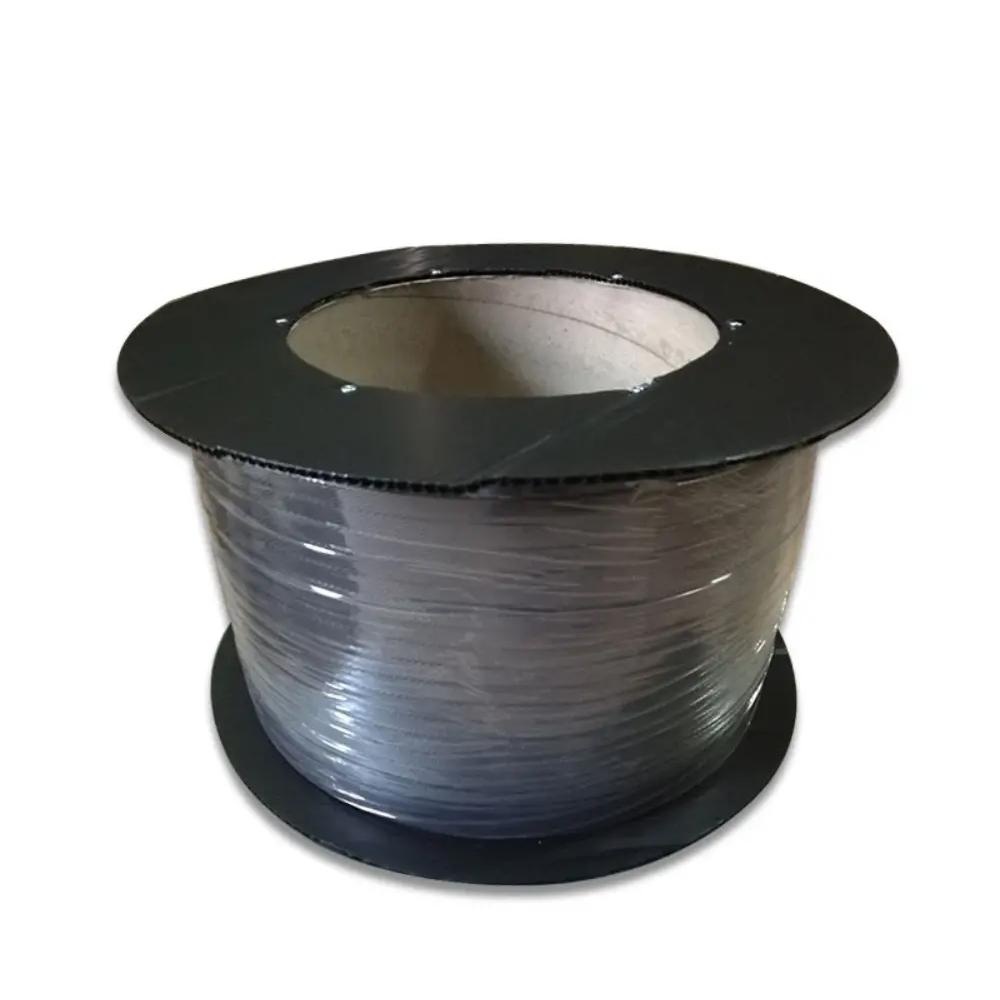

Conductive Strapping




The conductive strapping you described is a specialized packing material designed for use in Electrostatic Protected Areas (EPAs), ensuring safe handling of sensitive electronic components. Below is a concise summary of its key features and specifications:




Key Features:



Material: Conductive Polypropylene Co-Polymer (PP)



Dimensions:



Width: 12mm (±1mm)



Thickness: 0.6mm (±0.1mm)



Length per Roll: 1500 meters



Core Size: 200mm (I.D) x 190mm (H)



Electrostatic Properties:



Surface Resistivity (after baking): 1×10⁷ – 1×10⁹ Ω/sq



Surface Resistivity (before baking): 1×10⁴ – 1×10⁶ Ω/sq



Decay Time (MIL-PRF-81705B): <2.0 sec



Capacitance Probe (MIL-PRF-81705D): <30V (dissipates 1KV)



Mechanical Strength:




Tensile Strength: >250 kg/cm² (ASTM D638)



Weight: ~8.5 kg per roll (±1 kg)



Compliance & Standards:



MIL-PRF-81705D (Military Standard for ESD Protective Materials)



EIA 541 (Packaging Material Standards for ESD-Sensitive Items)



IEC 61340-5-1 (ESD Control for Electronic Devices)



Applications:



Securing multiple packages in EPAs



Safe for ESD-sensitive environments (electronics manufacturing, aerospace, medical devices)



Durable, hard-wearing strapping for box bundling



This strapping ensures static dissipation while maintaining high strength, making it ideal for industries requiring ESD-safe packaging solutions
