ESD Shelving Rack Trolley Cart


Variants



ESD Shelving Rack Trolley Cart to store electronics components, PCBS,Spools and transportation



Specification:

Material:Carbon Stainless Steel

Color:Silver

Single Peak Grid Space:20mm

Double Peak Grid Space:40mm

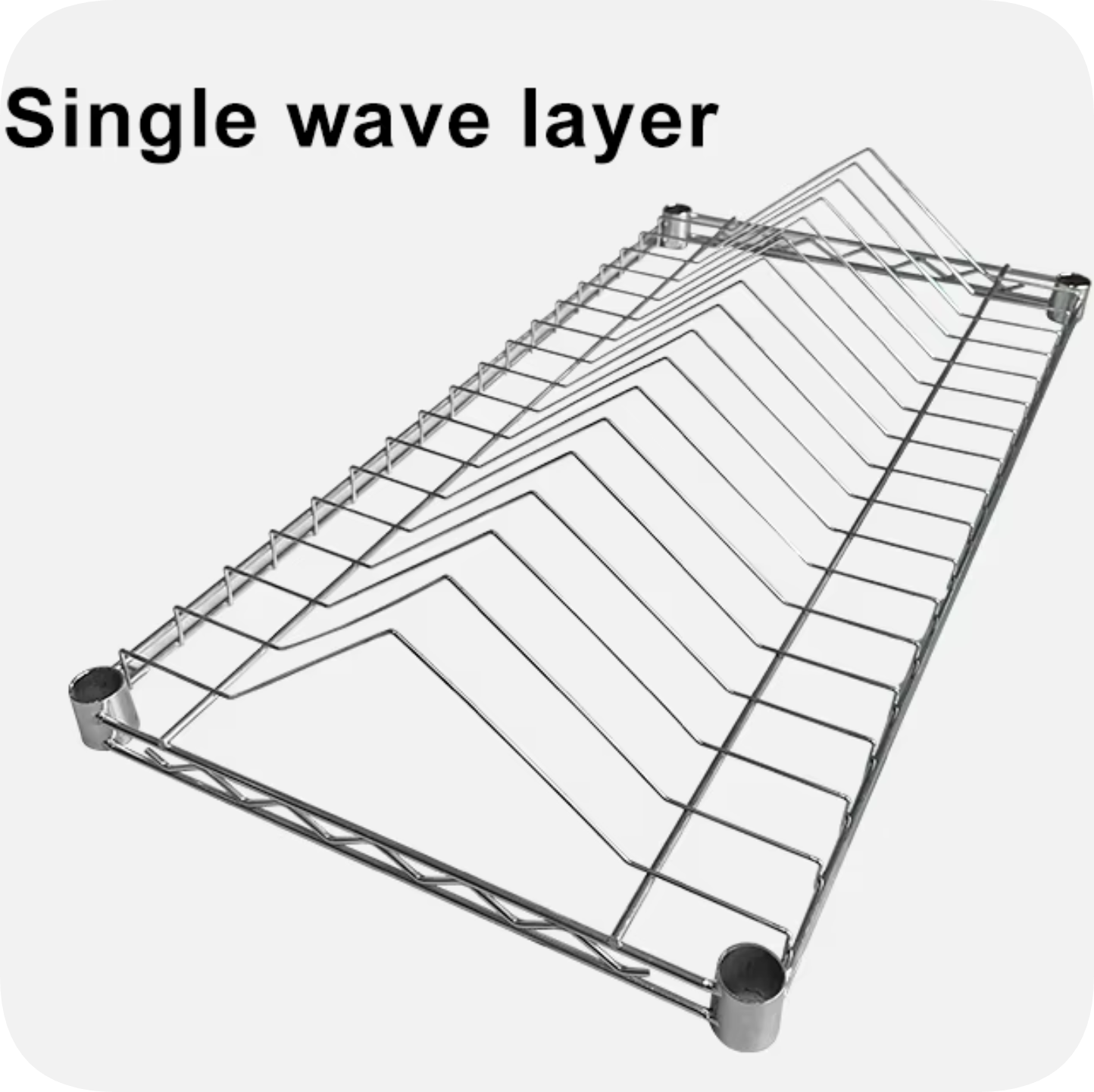

Single peak for big reel(13inch/330mm spools)

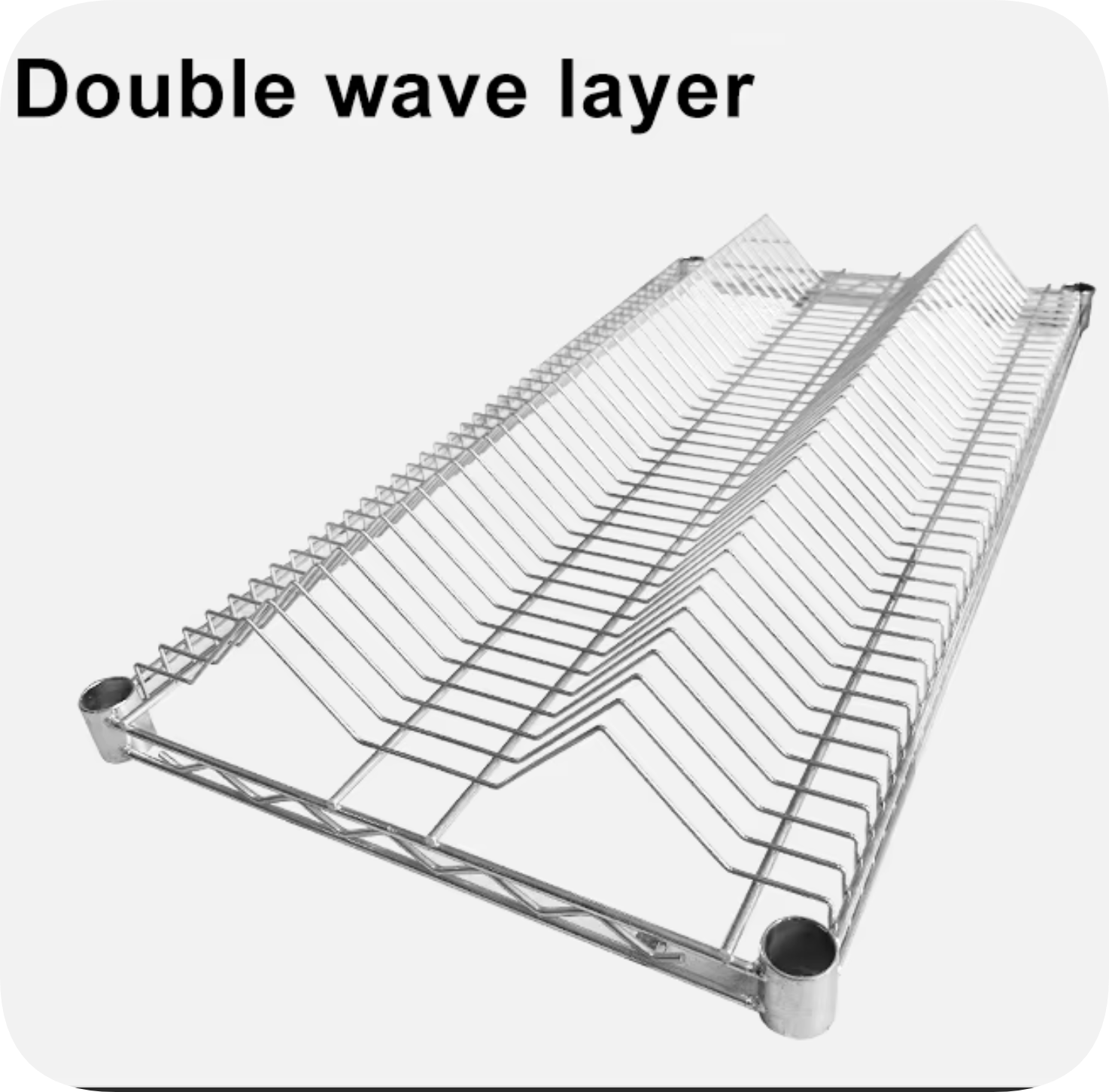

double peak for small reel(7inch/180mm spools)

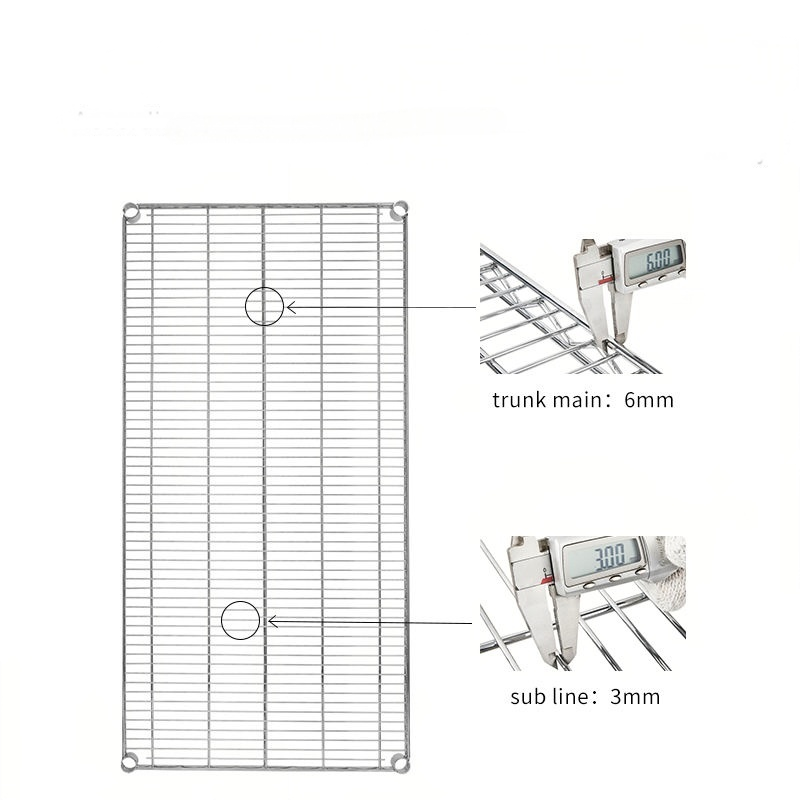

Wire Diameter:Trunk Main(6.0mm),Sub line(3.0mm),Wave Line(4.5mm)

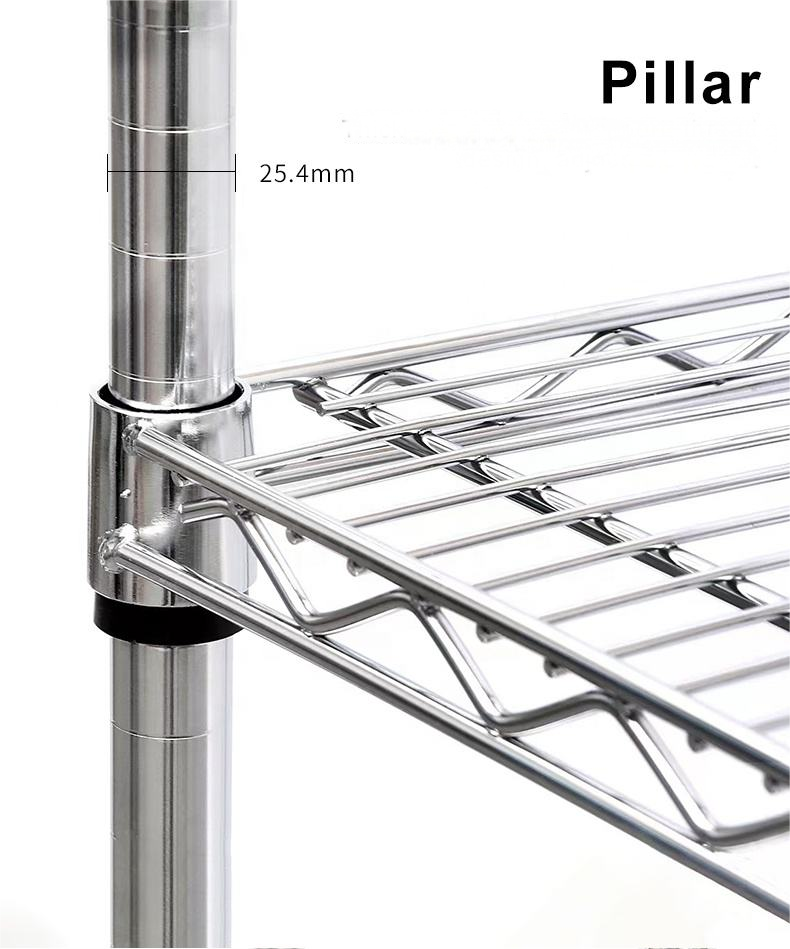

Pillar thickness:25.4mm

Each layer matched with 3 pair plastic clip +1 pair metal clip to connect each layer For ESD releasing

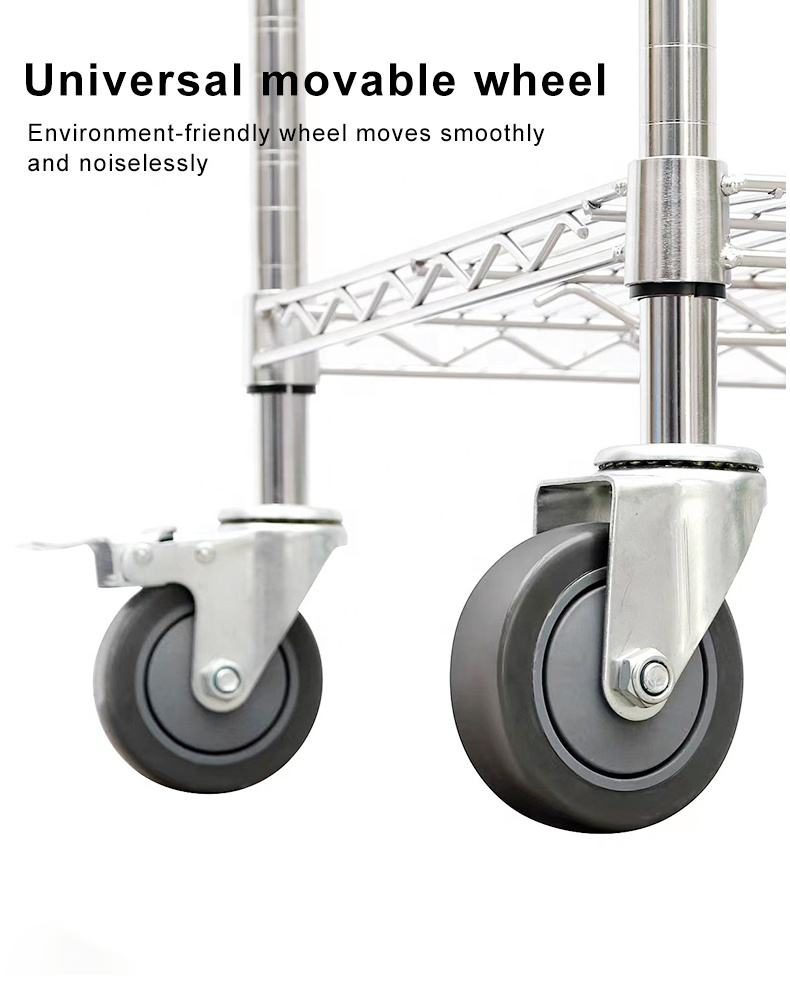

Includes 4 black ESD wheels, 2 of them with brakes+4 rubber bumpers

Surface Resistance:10e6-9ohm

Load capacity:150kg

With 1 grounding chain

Application:store electronics components, PCBS,Spools and transportation



Dimension:

Length*Width(mm)

355

457

533

609

757

757*355

757*457

757*533

757*609

907

907*355

907*457

907*457

907*609

1060

1060*355

1060*457

1060*457

1060*609

1215

1215*355

1215*457

1215*457

1215*609

1370

1370*355

1370*457

1370*457

1370*609

Different Height can be:940mm 1000mm, 1200mm,1500mm,1800mm,2000mm,layers can be matched freely.

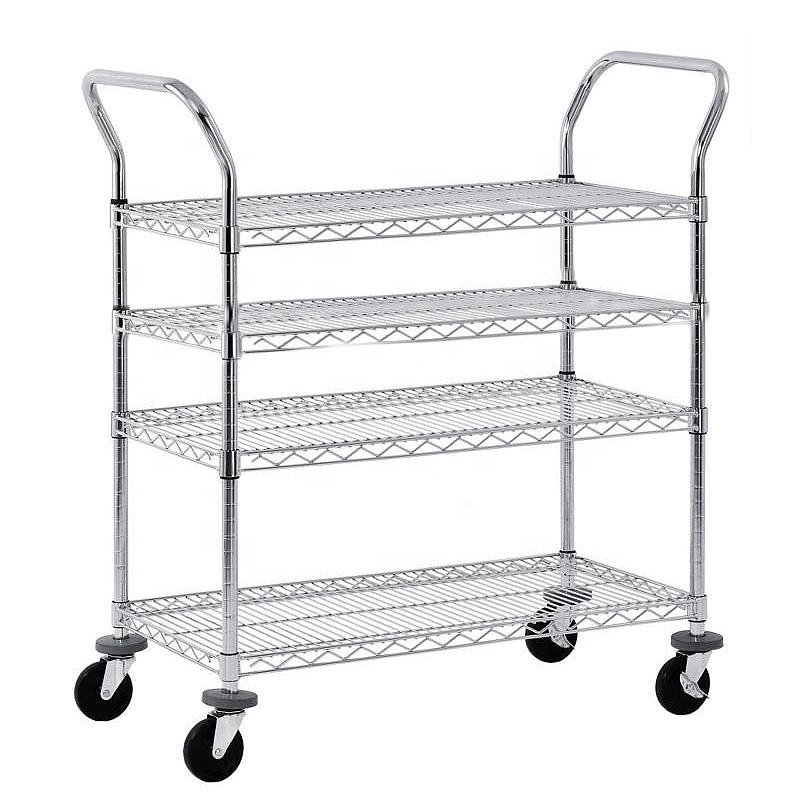

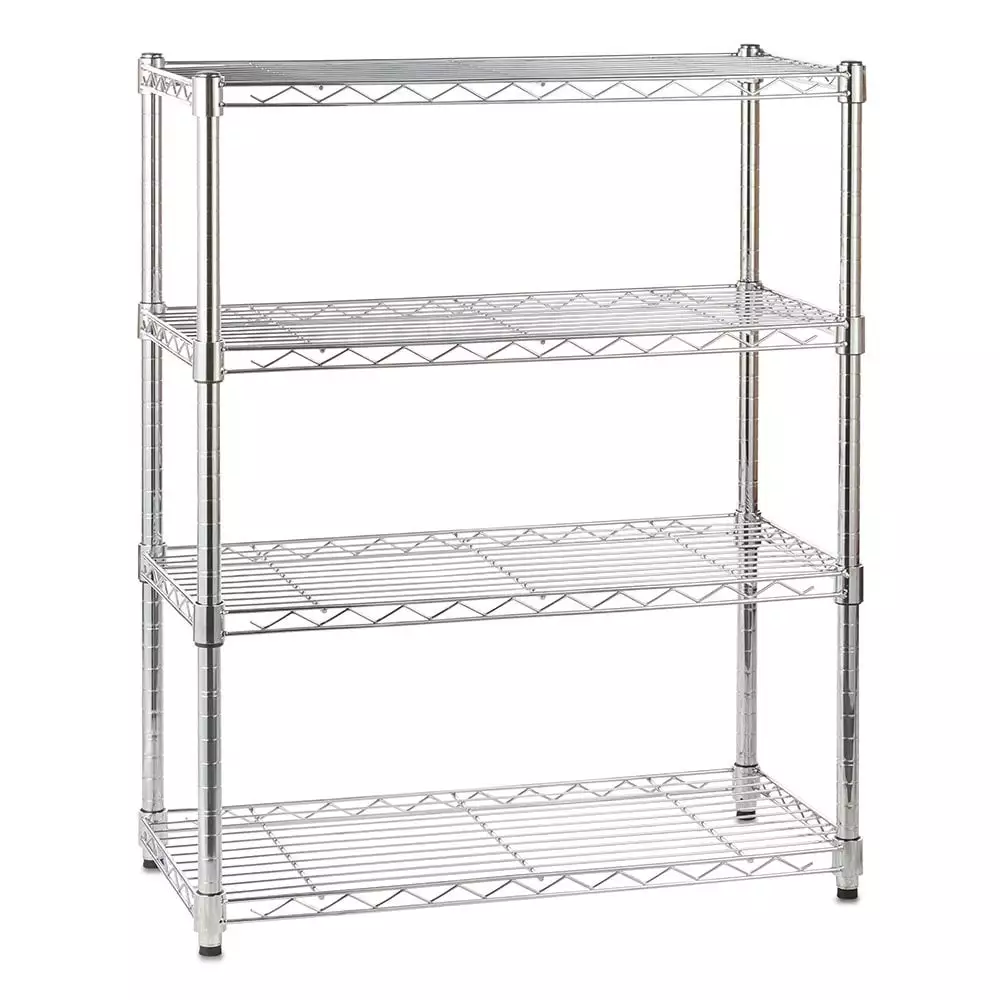

Detailed photos of ESD Shelving Rack Trolley Cart:

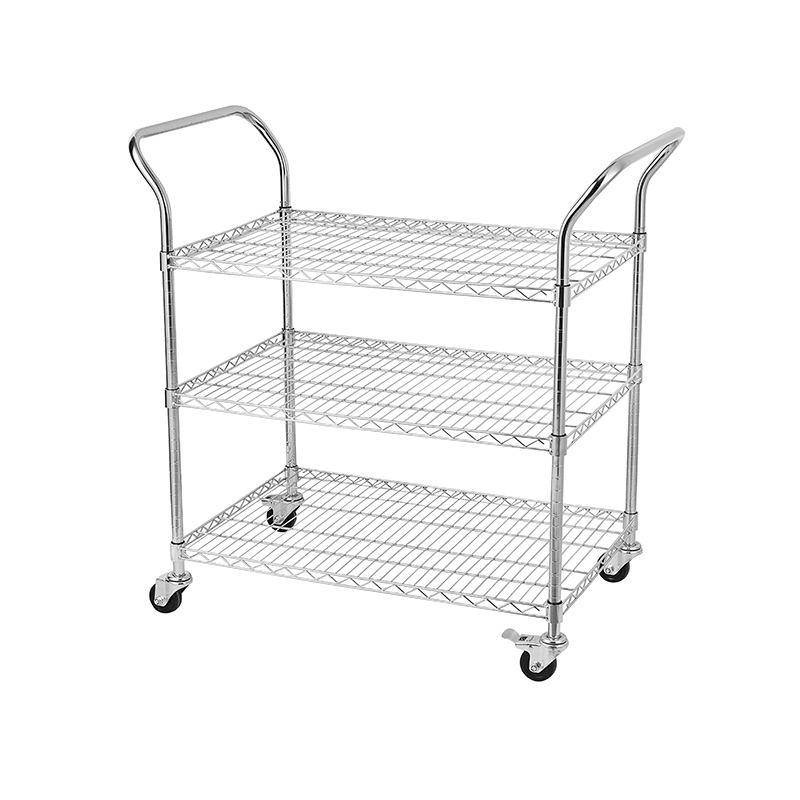

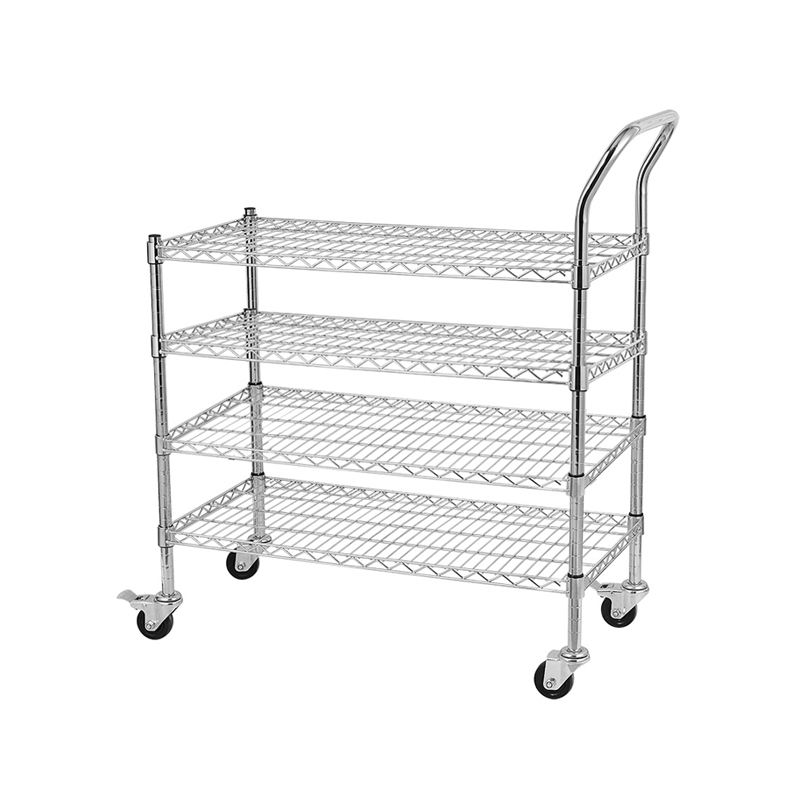

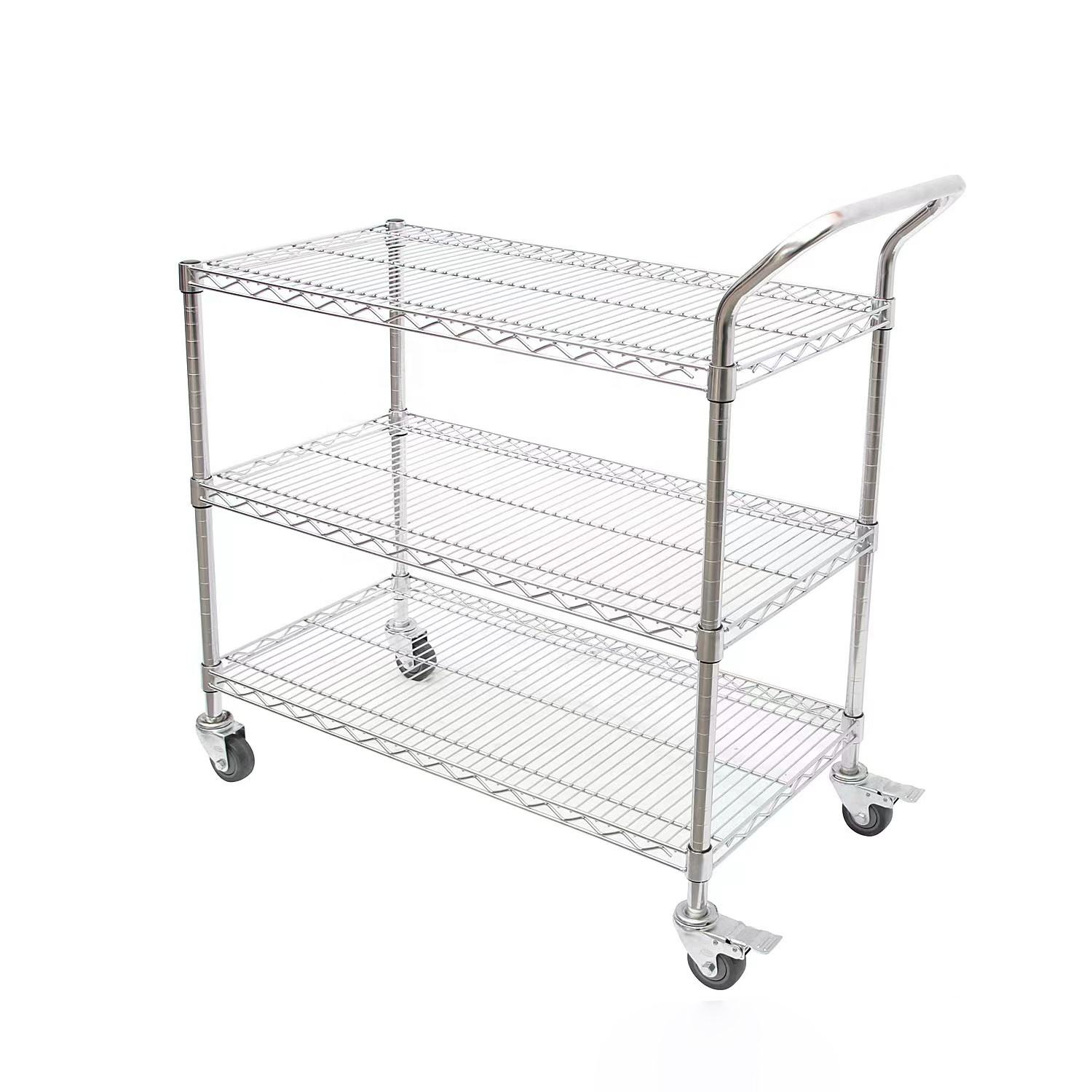

Some photos:
