FY0503


Variants

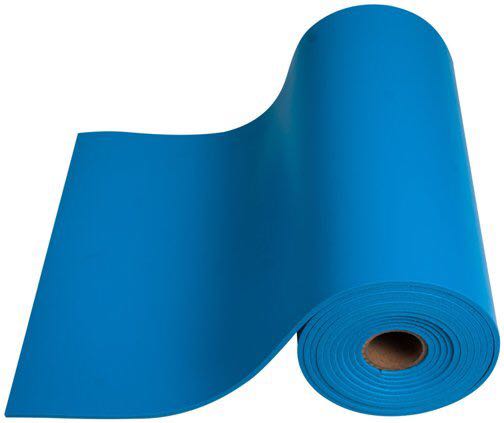

This mat is constructed from vinyl foam and designed for use as a table or work surface in areas requiring protection against static electricity. It effectively dissipates electrostatic charges while its cushioned construction provides superior comfort for users in Electrostatic Protected Areas (EPAs). The mat resists degradation from exposure to inorganic acids, organic acids, reducing agents, detergent solutions, alcohols, mineral oils, amines, and aldehydes. Standard roll size is 1.3m x 10m, with custom sizes available upon request. The product complies with the ANSI/ESD S2020 standard.

Key Features

• Features an internal mesh structure that ensures highly stable electrical resistance distribution.

• Exhibits wear resistance, chemical resistance, high elasticity, high tenacity, anti-aging properties, shock resistance, anti-fatigue performance, and fire retardancy.

• Standard colors: Blue and Grey.

• Comfortable foam design.

• Volume resistivity: ≤10⁷ Ω·cm. Static decay time: <2 seconds. Shelf life: ≥2 years.

• Standard specification: 1.3m (W) x 10m (L) x 3.5mm (T).

• Compliant with RoHS directives.

• Maximum temperature resistance: 80°C. Not suitable for use as a soldering iron work surface.
