FY0507 ESD Field Service Kit


Variants






Specifications:

ESD Field Service Kit

This static-safe field service kit is a portable, compact, and highly functional EPA (Electrostatic Protected Area) solution,

designed for engineers working away from permanent workstations. Packaged in a bright red/blue pouch for high visibility,

it enables compliance with EN 61340-5-1 standards during on-site repairs and maintenance.

The kit is especially suited for servicing equipment containing static-sensitive devices or components.

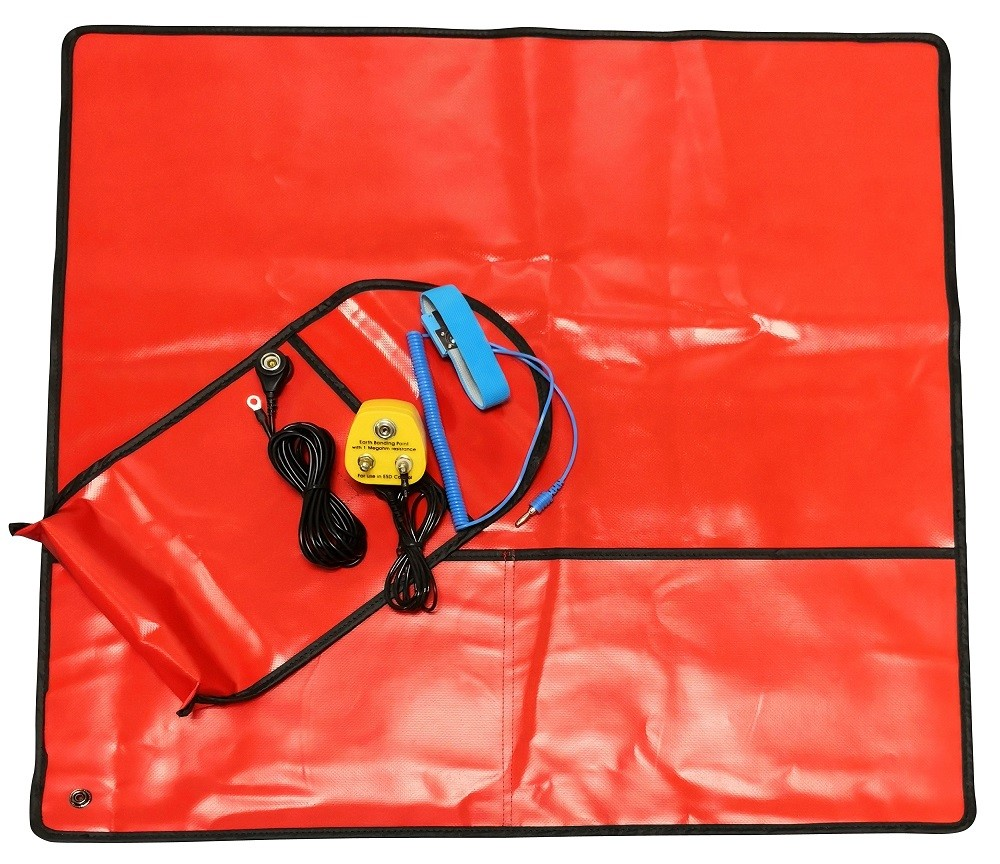

Kit Contents:

1 × Red pouch

1 × ESD mat (590 mm × 590 mm)

1 × 10 mm wrist strap

1 × Coiled earth lead (10 mm – banana connector)

1 × Straight earth lead (banana – banana connector with crocodile clip)

1 × Earth bonding plug (UK / Euro version – optional)


Technical Specifications:

Surface resistivity: 1×10⁶ – 1×10⁸ Ω

Material: 2-layer embossed vinyl

Operating temperature range: -5 °C to 40 °C

Weight: 350 g

Thickness: 0.6 mm
