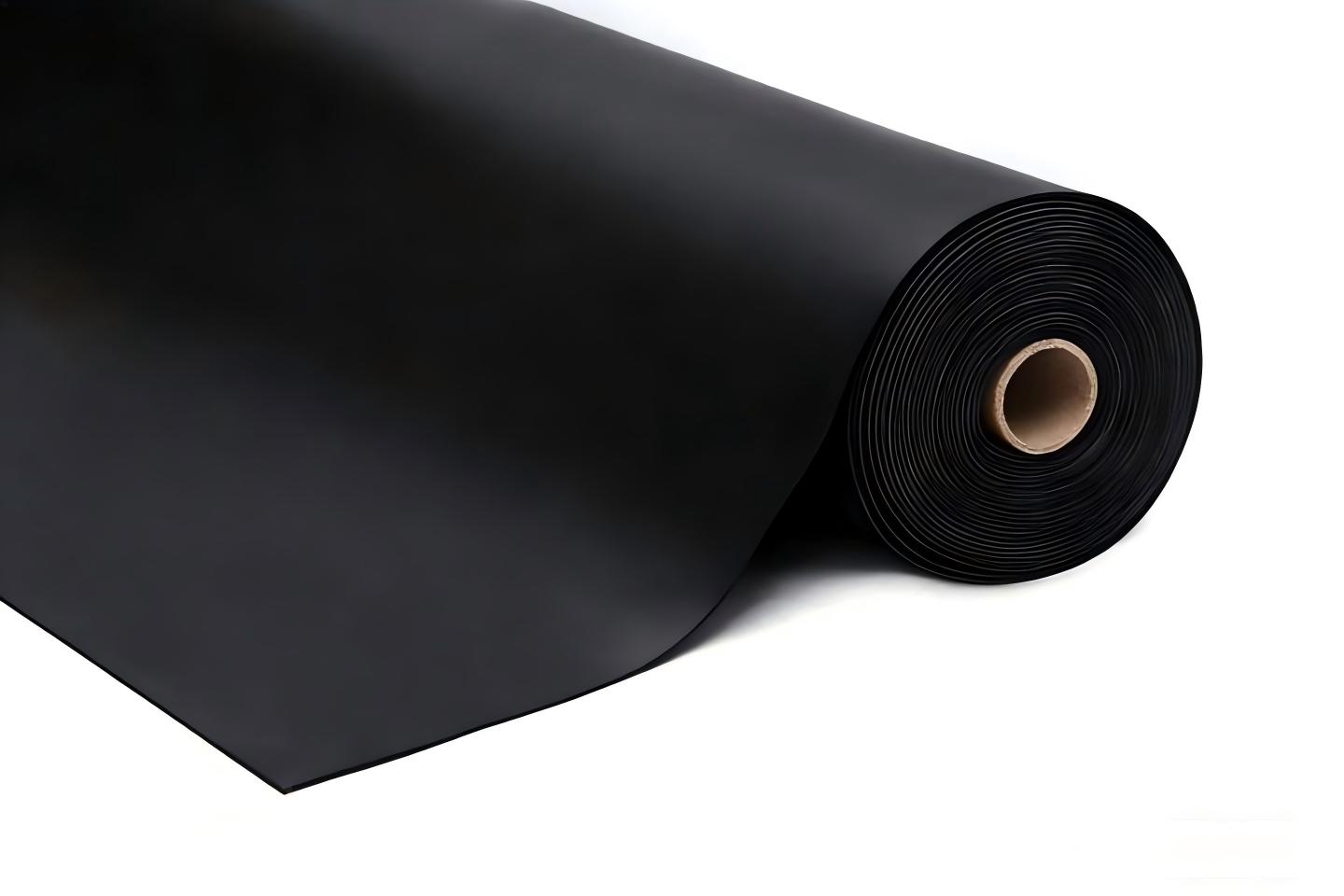

FY0508 Black Antistatic Rubber Matting


Variants






Specifications:

Material

▪ Primary Material: Perbunan (Nitrile-Butadiene Rubber)

▪ Additional Components: Conductive carbon black, antistatic agents, antioxidants, zinc oxide, sulfur, etc.

Technical Specifications

This black anti static rubber matting offers excellent heat and chemical resistance. The standard thickness is 2mm, with custom thicknesses available upon request.

Key Features

▪ Surface Resistance (Top): 10⁶–10⁹ Ω

▪ Surface Resistance (Bottom): 10³–10⁵ Ω

▪ Temperature Resistance: Up to 130°C

▪ Static Decay (1000 V to 100 V): <0.01 sec

▪ Dual-layer structure ensures reliable grounding

▪ Color: Black

Maintenance

Avoid contact with acidic or alkaline solvents (e.g., benzene, alcohol), as these may degrade the antistatic properties. For cleaning, gently wipe with a cloth dampened with a neutral solution such as water. When stored, keep the matting in its original packaging and protect it from moisture to prevent discoloration.
