FY0509 3 Layer ESD Matting


Variants






Specifications:

ESD mats are engineered to safely dissipate static charges from objects placed on their surface while also providing physical protection for ESD-sensitive devices against wear and tear. Constructed from durable materials, these ESD-safe mats offer long-lasting performance while maintaining their anti-static properties. For effective grounding, items placed on the mat must be either conductive or static-dissipative, as insulating materials—such as most plastics—prevent the discharge of static electricity to ground.

Features:

• Made from anti-static (conductive) and static-dissipative synthetic rubber

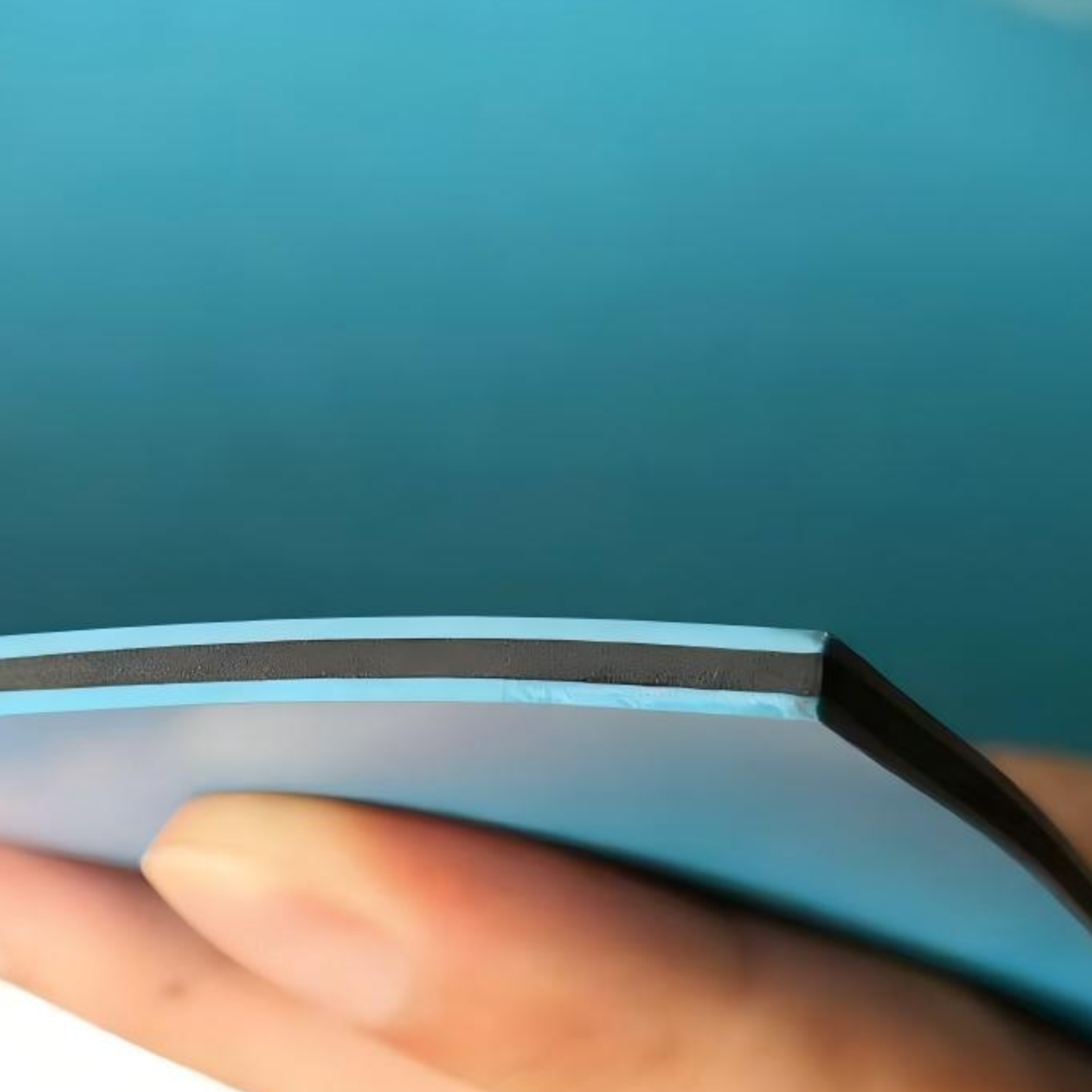

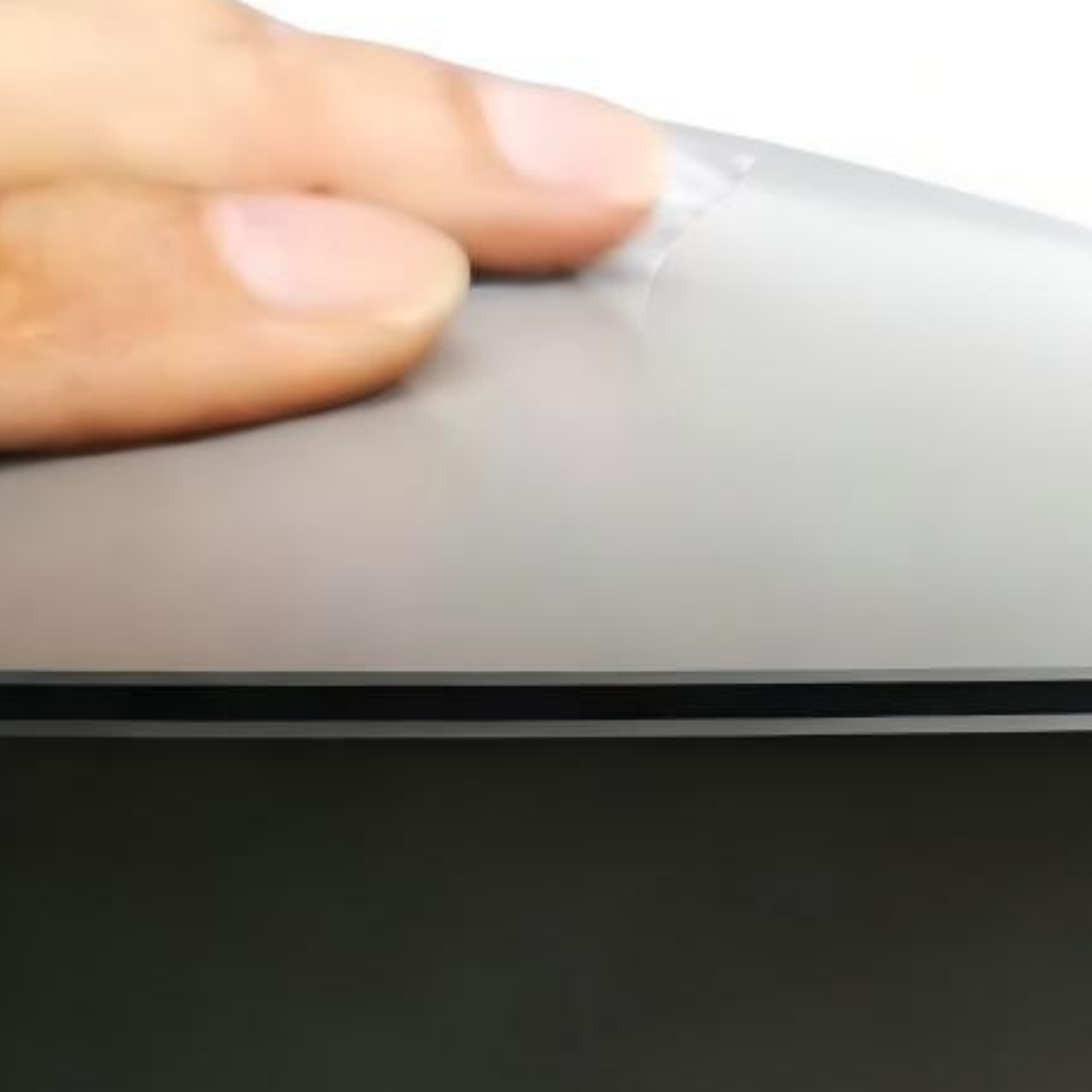

• 3 mm thickness with a 3-layer structure

• Top layer: 1.0 mm static-dissipative surface

• Middle layer: 1.0 mm black conductive layer

• Bottom layer: 1.0 mm static-dissipative backing

• Standard colors: Grey and Blue (custom colors available based on MOQ)

Technical Specifications:

• Material: Synthetic rubber composite

• Total thickness: 3 mm

• Layer composition: Static-dissipative / Conductive / Static-dissipative (1.0 mm each)

• Surface resistance: Typically within dissipative range (e.g., 10^6–10^9 Ω/sq)

• Color options: Standard (Grey, Blue) or custom upon MOQ
