SK1301 ESD Magazine Rack: Precision PCB Storage for Modern Electronics Manufacturing




Engineered for reliable ESD-safe handling and efficient workflow integration, the SK1301 Magazine Rack delivers robust performance in demanding production environments. Its all-metal top and bottom plates, combined with solid one-piece side panels, ensure exceptional durability and stability.



Key Features & Specifications:

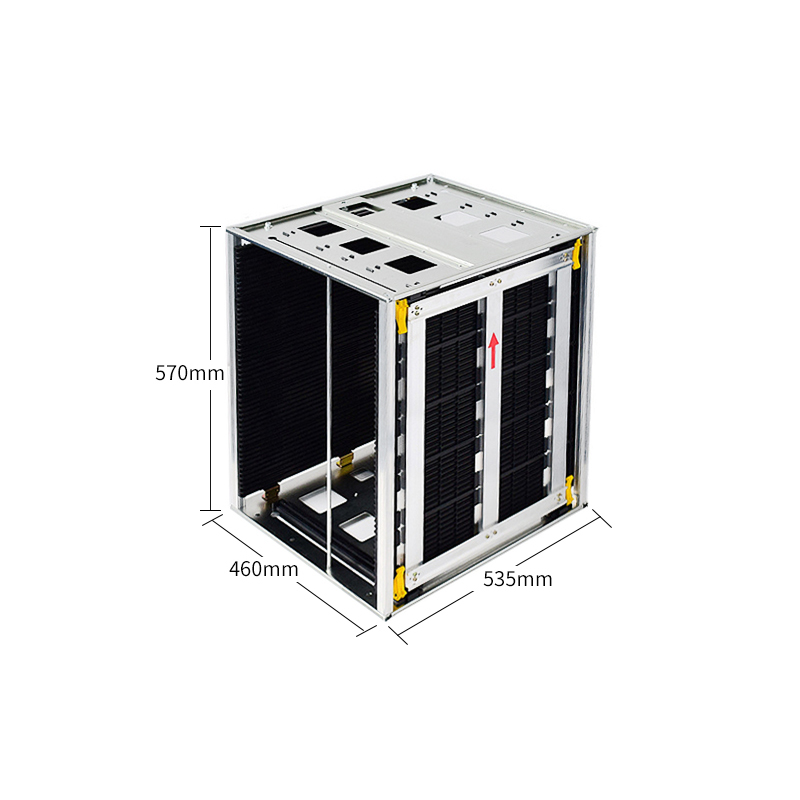

• Dimensions: 460mm(W) × 535mm(L) × 570mm(H)

• Weight: Approximately 9.5 kg

• PCB Capacity: Up to 50 boards

• PCB Width Range: 50mm (Min) – 390mm (Max)

• Slot Design: 5mm width × 3.5mm depth | 10mm pitch

• Temperature Resistance: Withstands up to 80°C

• Removable End Stops for flexible loading/unloading

• Gear-Adjustment System enables quick, tool-free setup



Why Choose the SK1301?

✔️ Durable & Secure – Full metal construction with ESD-safe materials

✔️ High Density Storage – Holds 50 PCBs in an organized, accessible layout

✔️ Easy to Configure – Gear-driven adjustment simplifies spacing changes

✔️ Thermal Resilient – Suitable for varied workshop and storage conditions



Perfect for SMT lines, assembly stations, testing areas, and repair workshops — designed to keep your PCBs protected and your process flowing smoothly.
