The SK1302 ESD Magazine Rack is a professional-grade storage system designed for secure, organized, and static-safe handling of printed circuit boards (PCBs). Engineered for manufacturing, assembly, and testing environments, this rack combines robust construction with precise adjustability to protect sensitive electronic components during production and storage.
Key Features & Benefits
Durable Hybrid Construction
• Top & Bottom Material: Heavy-gauge metal framework provides structural integrity and long-term durability.
• Side Material: Solid whole plates ensure stability and consistent slot alignment.
• Total Weight: Approximately 10.5 kg – offers a sturdy, non-tip base even when fully loaded.
Optimized PCB Capacity & Dimensions

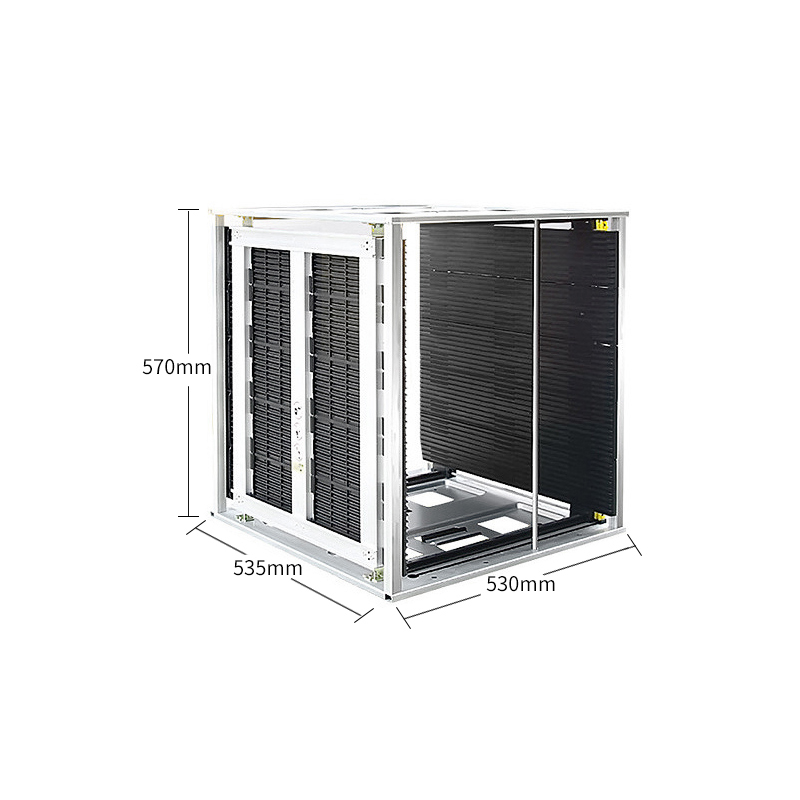

• External Dimensions: 530 mm (Width) × 535 mm (Length) × 570 mm (Height) – space-efficient footprint.
• PCB Capacity: Holds up to 50 PCBs – ideal for medium-to-high volume workflows.
• Compatible PCB Width Range: Accommodates boards from 120 mm (Minimum) to 460 mm (Maximum).
Precision Slot Design for Secure Storage
• Slot Width: 5 mm – ensures firm grip without damaging board edges.
• Slot Depth: 3.5 mm – provides secure vertical retention.
• Slot Pitch: 10 mm – fine adjustment for varying PCB thicknesses and with adequate spacing to prevent contact.
User-Centric Adjustability & Convenience
• Gear Adjusting Mechanism: Simplifies setup and adjustment of slot spacing with smooth, precise control.
• Removable End Stop: Allows easy loading and unloading of PCBs from either side; adaptable to workflow needs.
• Tool-Free Adjustments: Reduce downtime and enhance operational efficiency.
Environmentally Resilient
• Temperature Tolerance: Withstands up to 80°C – suitable for various industrial environments, including post-reflow cooling or elevated-temperature storage.
Technical Specifications
Top and bottom Material:Metal
Side Material:Whole Plates
Dimension:Dimensions (mm) - 530W*535L*570H
Weight:About 10.5KG
Minimum PCB Width:120mm
Maximum PCB Width:460mm
PCB Capacity:50pcs
Slot width of side plate:5mm
Slot depth of side plate:3.5mm
Slot pitch of side plate:10mm
Temperature tolerates 80ºC
Removable end stop
Gear adjusting,simplify set-up.
Ideal Applications
• PCB Assembly Lines: Storage between solder paste printing, component placement, and reflow.
• Testing & Inspection Stations: Organized board handling during QA and functional testing.
• Cleanroom & ESD-Protected Areas: Safe storage in static-sensitive environments.
• Manufacturing Buffer Stock: Temporary holding of boards during production stages.
• Rework & Repair Stations: Keeps boards orderly and accessible.
Why Choose the SK1302?
1. Reliable Protection: Secure slot design minimizes board movement and risk of physical or electrostatic damage.
2. Operational Efficiency: High-density storage (50 boards) saves bench space and improves workflow organization.
3. Long-Term Durability: Metal-reinforced build ensures years of reliable service in demanding conditions.
4. Flexible Configuration: Easily adjustable to different board sizes and thicknesses without tools.
5. Heat Resistant: Suitable for use in elevated-temperature industrial settings.
