SK1303 ESD-Safe Magazine Rack | Efficient PCB Storage Solution




The SK1303 ESD Magazine Rack is a durable and high-capacity storage system designed for secure and organized PCB handling. Built to withstand industrial environments, it supports efficient workflow with easy-adjust features and robust construction.



Key Features:

• High Capacity: Holds up to 50 PCBs, ideal for medium-volume production lines.

• Wide Compatibility: Accommodates PCB widths from 100mm to 330mm, offering flexibility for various board sizes.

• Sturdy Metal Construction: Features a solid metal top and bottom for enhanced stability and durability.

• Full Side Plates: Provides complete protection and improved rigidity.

• Precision Slot Design:

◦ Slot width: 5mm

◦ Slot depth: 3.5mm

◦ Slot pitch: 10mm

• Easy Setup & Adjustment: Gear-adjustable mechanism allows quick and tool-free configuration.

• Removable End Stop: Enables easy loading and unloading of PCBs.

• Heat Resistant: Withstands temperatures up to 80°C, suitable for various workshop conditions.



Specifications:

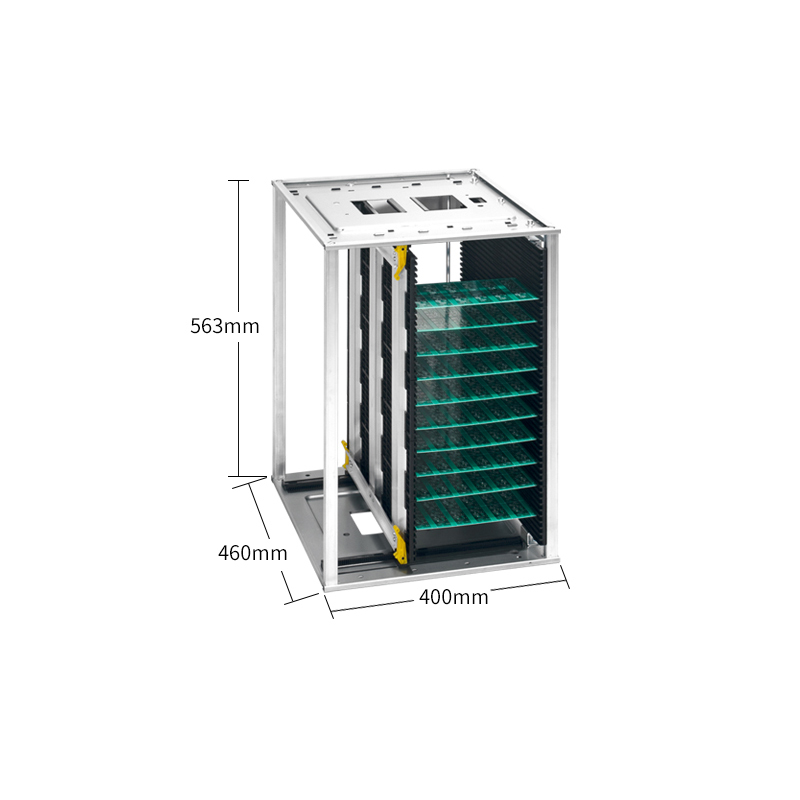

• Dimensions: 400mm (W) x 460mm (L) x 563mm (H)

• Weight: Approximately 8 kg

• Material: Metal frame with full side plates

• Color: Industrial finish (typically ESD-safe black)



Ideal For:

• Electronics assembly lines

• PCB testing and inspection stations

• SMT and workshop storage

• Labs and repair centers requiring ESD-safe handling
