In the fast-paced world of electronics manufacturing and assembly, maintaining a static-safe environment
is non-negotiable. Introducing the SK460-3 Columns ESD SMT Trolley Cart—a robust, highly functional,
and meticulously engineered storage solution designed to streamline your workflow while ensuring maximum protection against electrostatic discharge (ESD).
Built from high-quality stainless steel and durable PP plastic, this trolley cart combines strength, functionality, and ESD safety in one versatile unit.
Whether you're in semiconductor manufacturing, SMT (Surface Mount Technology) production, PCB handling, or electronic assembly,
the SK460-3 Columns ESD Trolley Cart is an indispensable tool for organizing, transporting, and storing sensitive components safely and efficiently.
Detailed Product Parameters
Material: Stainless Steel + PP Plastic (combining durability with static dissipation)
Dimension (L x W x H): 900mm × 550mm × 1260mm

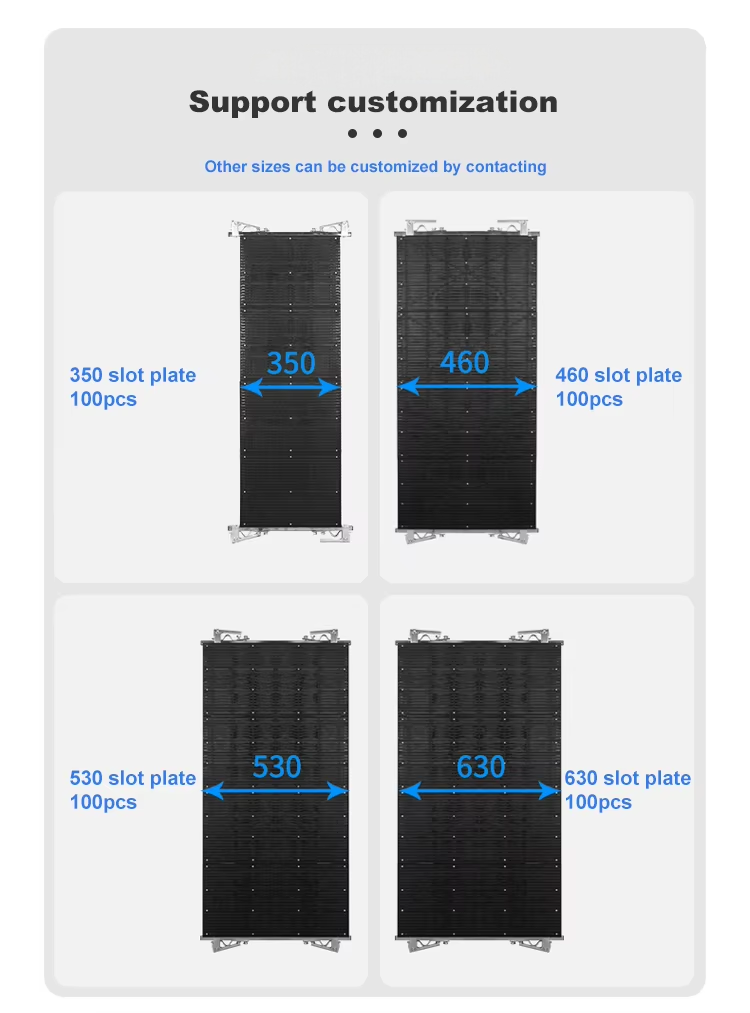

Side Panel Length: 460mm
Capacity: 3 Columns
Storage per Column: 100 slots

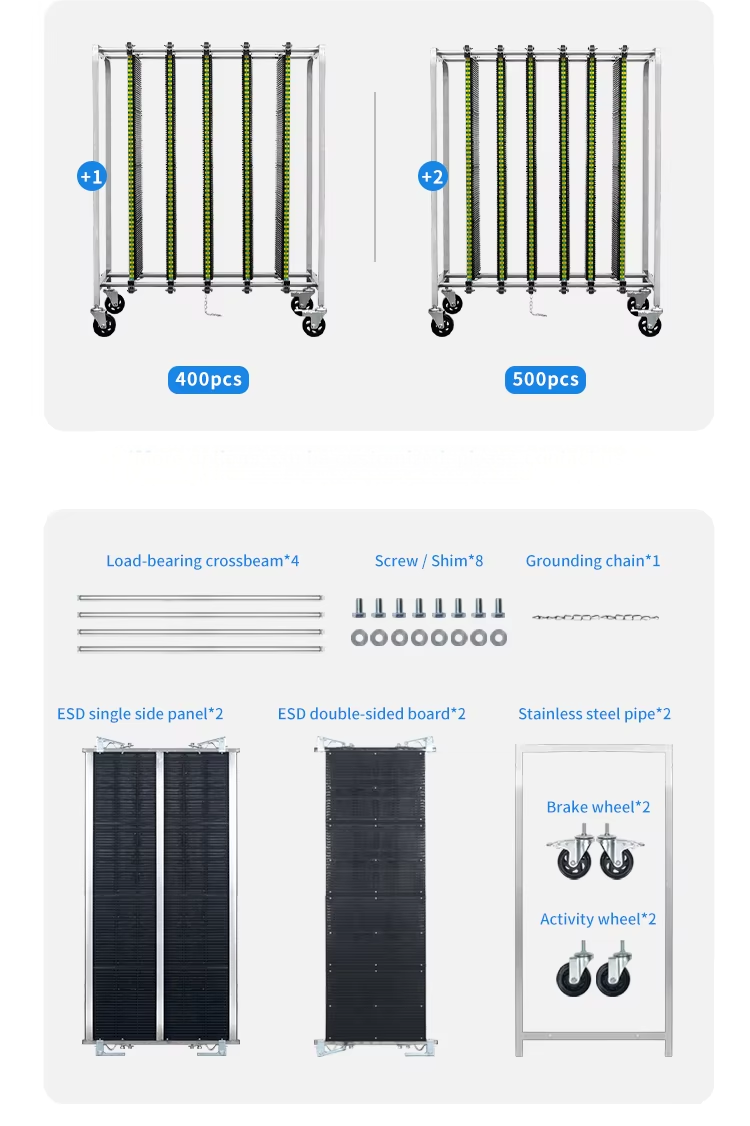

Type: Plug-in design for easy assembly and customization
Slot Depth: 5mm
Slot Width: 4.5mm
Slot Distance: 10mm
Panel Thickness: 10mm

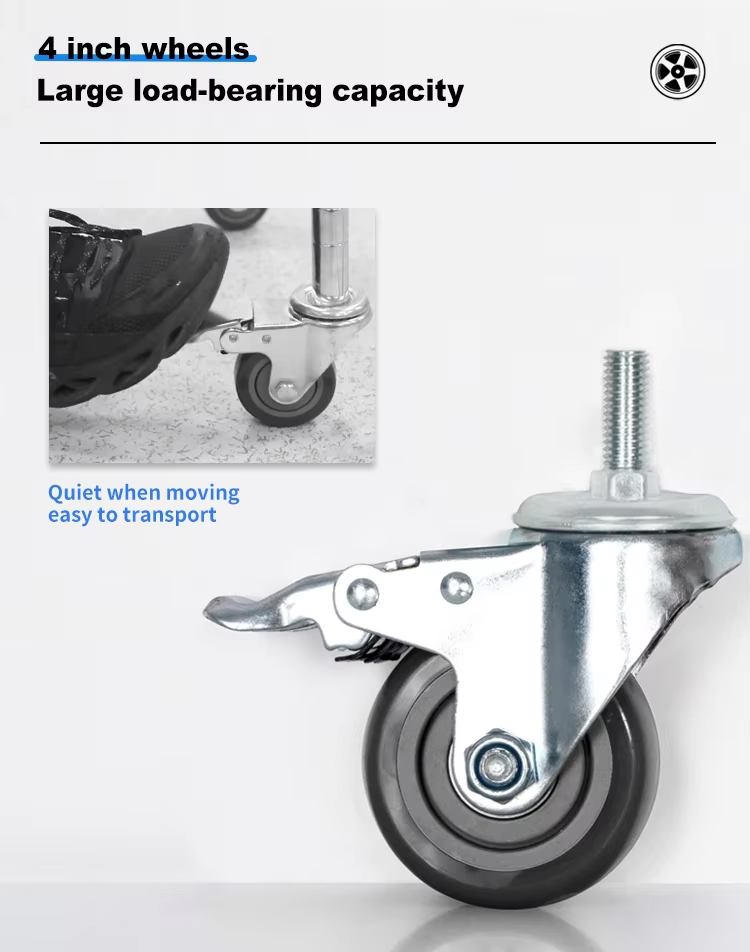

Wheels: 4 x 4-inch ESD Rubber Wheels for smooth and safe mobility

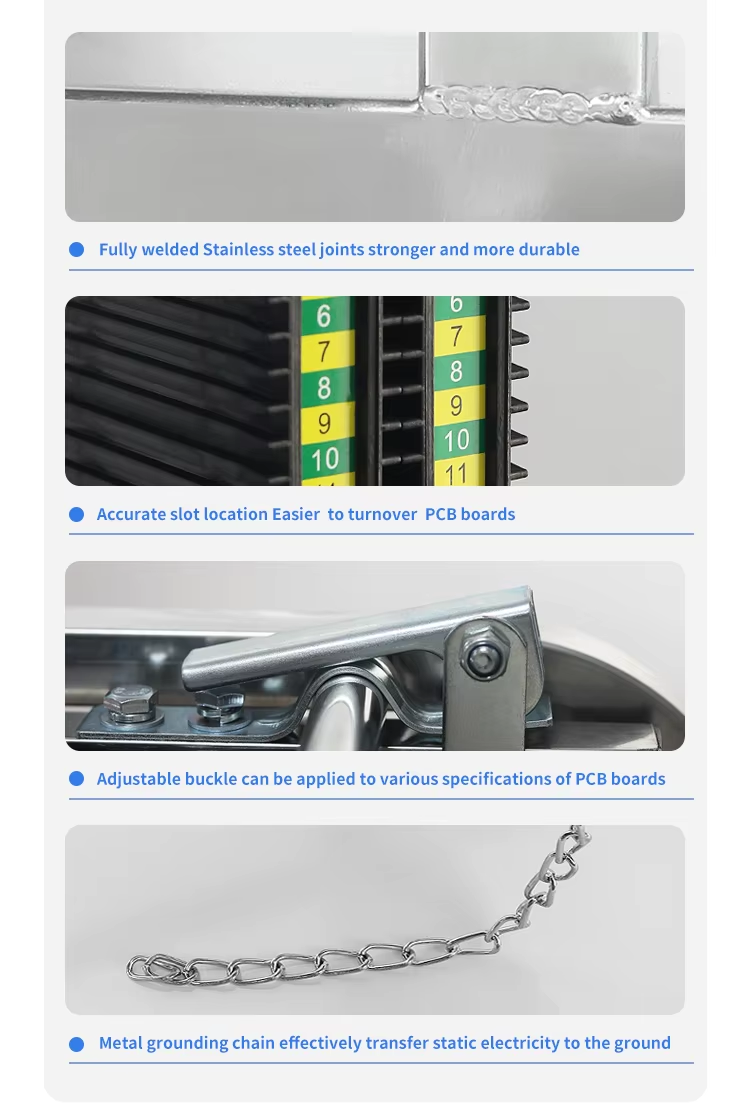

Additional Feature: Conductive chain for continuous grounding

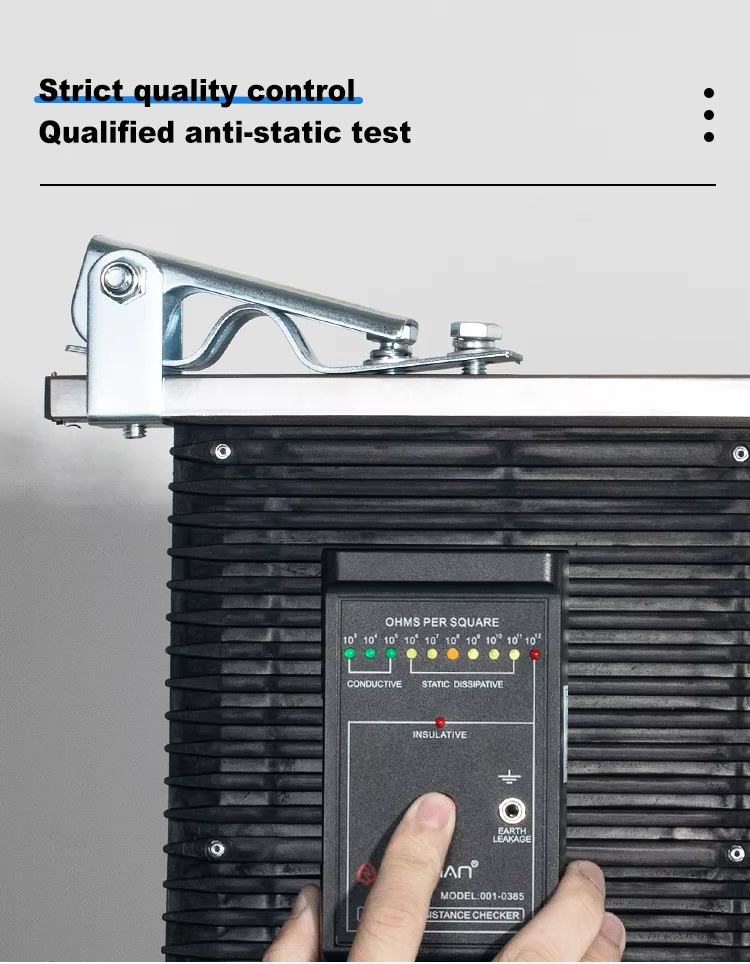

Surface Resistance: 10⁶–10⁹ Ω (optimal for ESD protection)
Key Features & Benefits
Superior ESD Protection
With a surface resistance of 10⁶–10⁹ Ω and a built-in conductive chain, this trolley effectively dissipates static electricity,
preventing damage to ESD-sensitive components such as ICs, PCBs, and microchips.
High Storage Capacity
Featuring three columns with 100 slots each, the trolley offers a total storage capacity of 300 slots—ideal for high-volume environments.
Durable Construction
The combination of stainless steel and anti-static PP plastic ensures long-lasting performance even in demanding industrial settings.
Mobility & Maneuverability
Equipped with four 4-inch ESD rubber wheels, the trolley moves smoothly across floors while maintaining electrical grounding.
The wheels are also non-marking and anti-slip.
Modular Plug-in Design
The plug-in type structure allows for easy assembly, disassembly, and reconfiguration based on storage needs.
Precision Slot Design
Slots are designed with a depth of 5mm, width of 4.5mm, and spaced 10mm apart to securely hold SMT trays,
PCB panels, and other electronic components.
Applications and Use Cases
The SK460-3 Columns ESD SMT Trolley Cart is widely used across industries where ESD control is critical:
SMT Production Lines: Transporting and storing SMT feeders, reels, and PCBs.
PCB Assembly: Organizing and moving assembled boards between stations.
Semiconductor Manufacturing: Handling wafers, chips, and other static-sensitive items.
Electronics Repair Shops: Keeping components organized and safe during diagnostics and repairs.
Laboratories and R&D Facilities: Supporting prototyping and testing processes with ESD-safe storage.
User Scenarios & Testimonials
Scenario 1: Electronics Manufacturing Plant
At a leading electronics factory, the SK460 ESD Trolley is used to transport PCB panels from the assembly line to the testing department.
Its high capacity and easy mobility have reduced handling time by 20%, while the ESD protection has significantly decreased component failure rates.
User Review:
“We’ve been using the SK460 trolleys for over a year now. They are sturdy, reliable, and most importantly, they’ve helped us maintain ESD safety across our floor.
The wheels are smooth and the slots are perfectly sized for our PCB panels.” — John T., Production Manager
Scenario 2: R&D Laboratory
In an innovation lab, engineers use the trolley to organize prototype boards and components.
The plug-in design allows them to adjust slot layouts based on project needs.
User Review:
“The flexibility of this cart is impressive. We reconfigure it often depending on what we’re building,
and it hasn’t worn out. The ESD performance is consistently reliable.” — Linda K., Senior Engineer
Why Choose the SK460-3 Columns ESD Trolley Cart?
Improves workflow efficiency with easy mobility and high storage density.
Reduces E-related losses in sensitive electronic operations.
Customizable and adaptable to various production environments.
Complies with IEC 61340-5-1 ESD standards.
Purchasing Advice
When selecting an ESD trolley cart, consider the following:
Storage Needs: Evaluate the number and type of components you handle.
Mobility Requirements: Choose models with quality wheels if frequent movement is needed.
Environment: Ensure materials are suitable for your facility’s conditions (e.g., cleanroom, warehouse).
Compatibility: Check slot dimensions against your tray or panel sizes.
The SK460-3 Columns ESD SMT Trolley Cart is an excellent investment for any operation prioritizing efficiency and ESD safety.
ESD trolley cart, SMT trolley, ESD storage cart, anti-static trolley, PCB storage cart, semiconductor trolley, ESD-safe transport, plug-in ESD cart,
stainless steel ESD trolley, SMT production cart, electronic assembly trolley, ESD protection equipment,
conductive wheel trolley, workshop storage solution, industrial ESD cart.
Elevate your electronic manufacturing and assembly process with the SK460-3 Columns ESD SMT Trolley Cart
—where safety, capacity, and mobility meet.
