In the fast-paced world of electronics manufacturing and SMT (Surface Mount Technology) assembly,
efficient, safe, and organized component storage is not just a convenience
—it’s a necessity. Introducing the SK530-4Columns ESD SMT Trolley Cart,
a high-performance, anti-static storage cart engineered to streamline your workflow,
enhance component protection, and improve overall productivity.
Designed with precision and built for durability,
this trolley cart is an essential asset for any ESD (Electrostatic Discharge)-sensitive environment.
The SK530-4Columns ESD SMT Trolley Cart is constructed from a robust combination of Stainless Steel and PP Plastic,
ensuring long-lasting structural integrity and reliable anti-static properties.

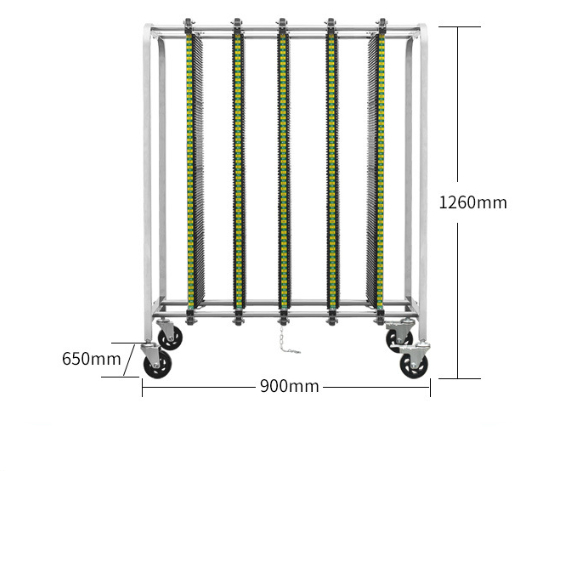

With overall dimensions of 900mm (L) x 650mm (W) x 1260mm (H),
it offers a spacious yet compact footprint ideal for workshop and cleanroom settings.
Each cart features four vertical columns, with each column capable of storing up to 100 pieces of SMT trays or PCBs,
providing a total storage capacity of 400 items—making it perfect for high-volume operations.
Key Features & Technical Specifications
1. Superior Material Construction
Stainless Steel Frame: Offers exceptional strength, corrosion resistance, and longevity.
PP Plastic Components: Lightweight, durable, and excellent for ESD control.

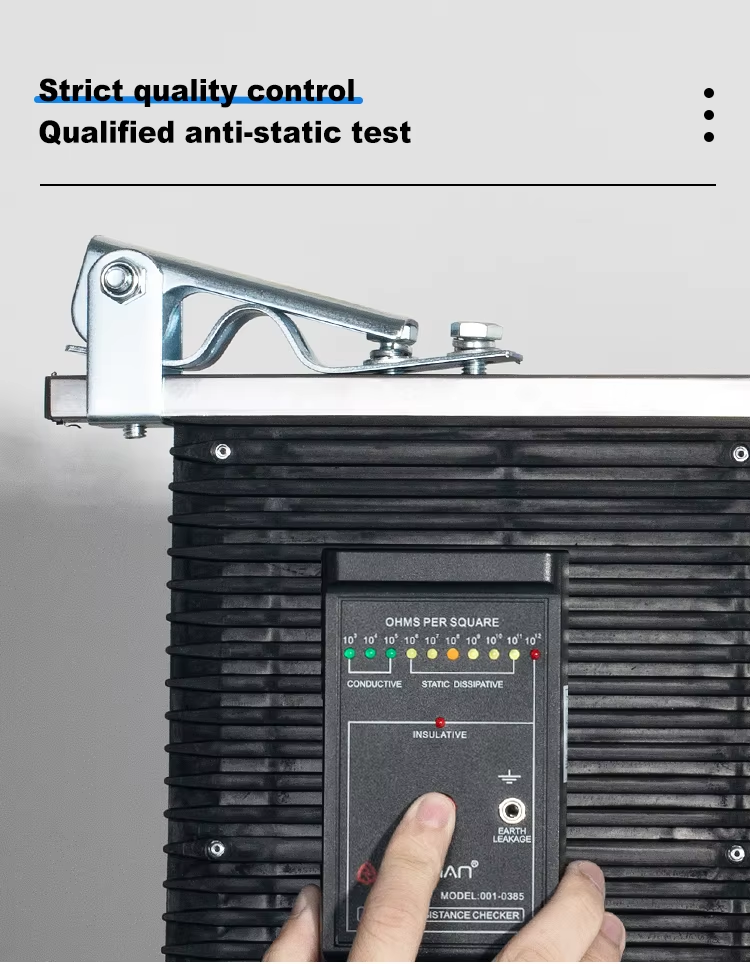

Surface Resistance: Maintains a consistent surface resistance of 10⁶–10⁹ Ω, effectively dissipating electrostatic charges and protecting sensitive components.
2. Optimized Storage Design
4-Column Plug-in System: Allows flexible and efficient organization of SMT trays.
Slot Dimensions: Each slot has a depth of 5mm, width of 4.5mm, and is spaced at 10mm intervals, ensuring secure holding and easy access for standard-sized trays.
Panel Thickness: 10mm thick panels provide stability and prevent warping.
3. Enhanced Mobility and Safety

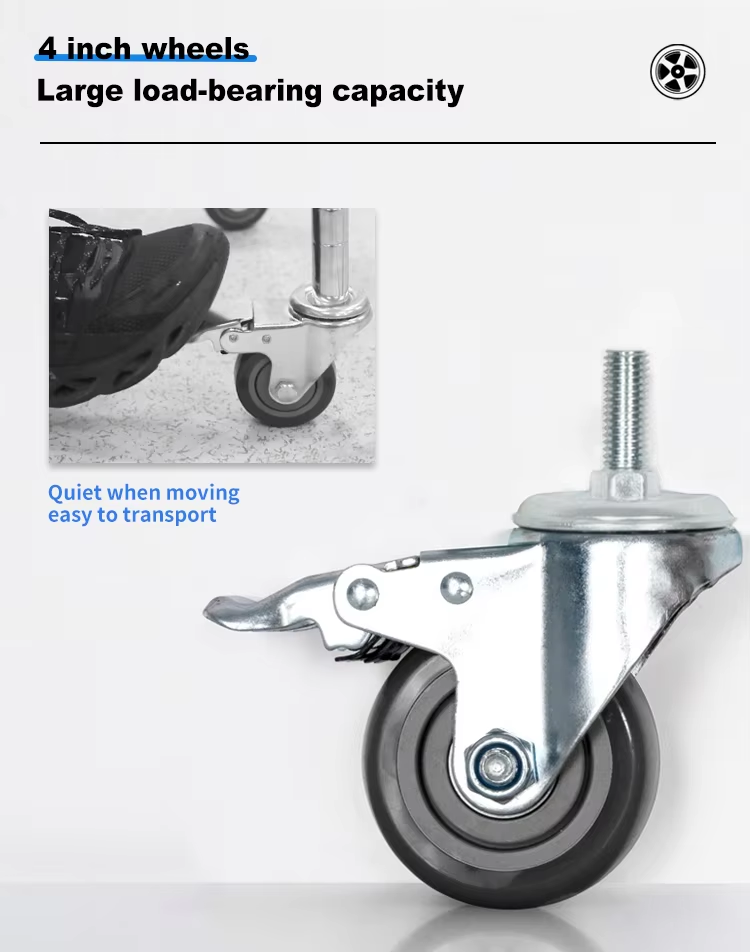

4-Inch ESD Rubber Wheels: Four large, durable wheels ensure smooth maneuverability across different floor surfaces while grounding the cart to prevent static buildup.

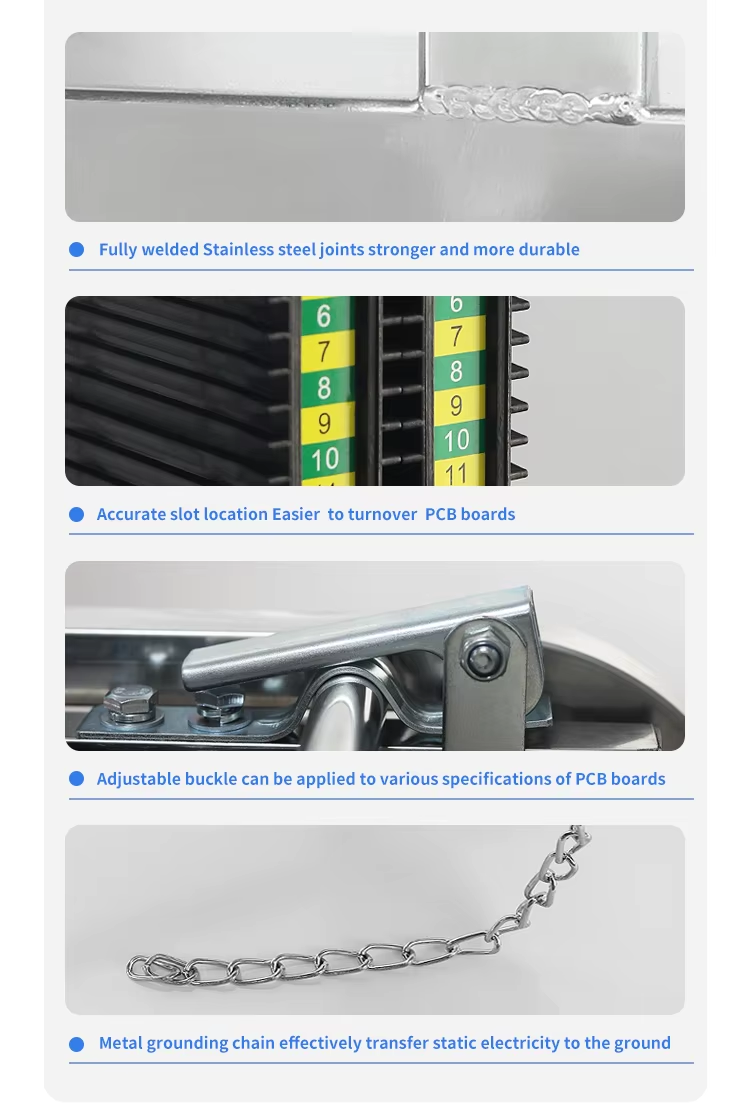

Conductive Chain: Dragging conductive chain further enhances static discharge capabilities, safeguarding components during movement.
4. User-Friendly Design

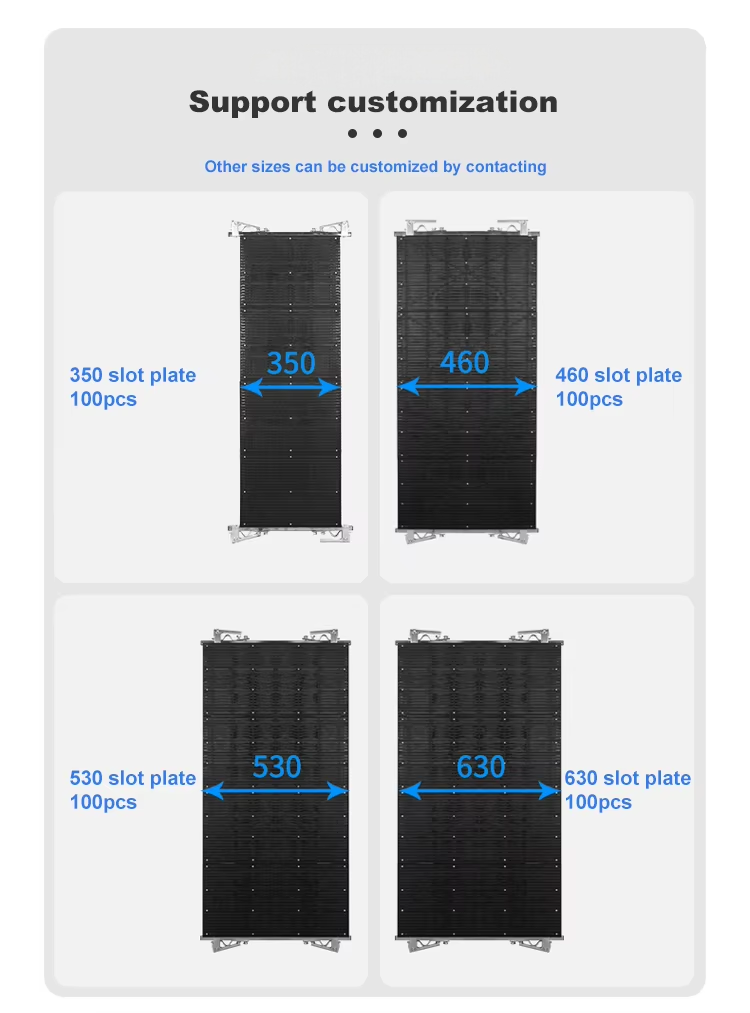

Side Panel Length: 530mm, optimized for easy handling and accessibility.

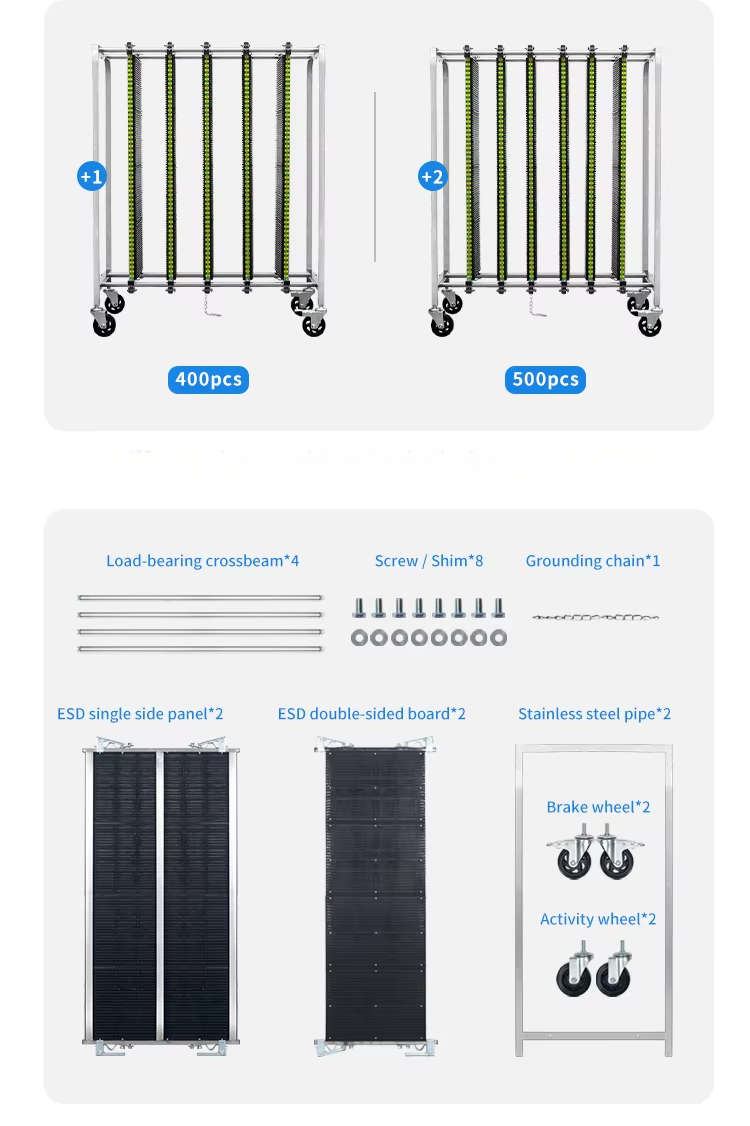

Plug-in Type Columns: Enable quick setup, reconfiguration, and scalability based on storage needs.
Why Choose the SK530-4Columns ESD SMT Trolley Cart?
ESD Protection: Ideal for ESD-protected areas (EPAs), preventing damage to static-sensitive devices.
Space Efficiency: Vertical design maximizes storage capacity without occupying excessive floor space.
Durability: Built to withstand daily use in industrial environments.
Versatility: Suitable for a wide range of applications including electronics manufacturing,
PCB handling, medical device assembly, and laboratory storage.
Ideal Applications
This trolley cart is widely used in:
SMT and PCB assembly lines
Electronic repair and testing facilities
Cleanrooms and ESD-safe workstations
Inventory management and logistics within manufacturing plants
The SK530-4Columns ESD SMT Trolley Cart combines functionality, safety, and smart design to meet the demanding needs of modern electronics manufacturing.
With its high storage capacity, superior ESD protection, and rugged construction, it is an invaluable tool for enhancing operational efficiency and product reliability.
Invest in a storage solution that protects your components and boosts your productivity.
Choose the SK530-4Columns ESD SMT Trolley Cart for a smarter, safer workplace.
