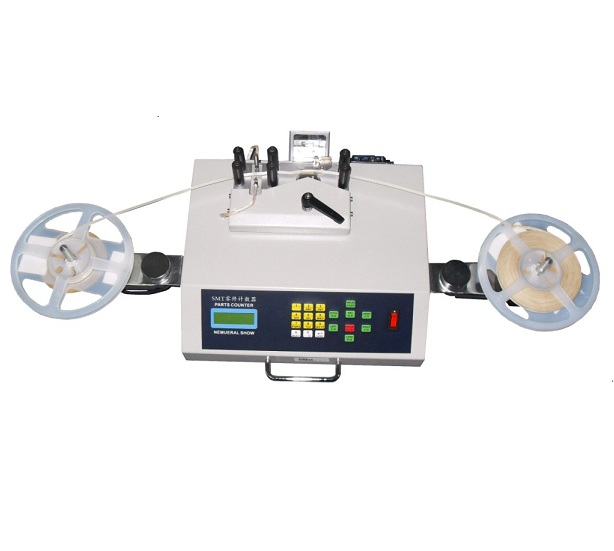

YS-802 SMD parts counter with detecting missing function


Variants



Function information:


1Leak detection SMD parts countereasy to operation,small in size and convenient to use.

2It can be count both by forward and reverse,which is very accurate and has zero error,especially designed for SMD parts.
3Within the function of leak detectionwhen there is a missing parts,this machine will be stoped and make a voice.

4You can set a number  you need, when the counting finished the machine will be stoped, which is very convenience for you to count,issue and receive the SMD spare parts.

5It could be equip the scanning and bar code printer,convenience for you to operate.

6It is small and lightweight,convenient to carrydesigned especally for SMD factory which use to count the SMD parts.

   7Barcode printers and scanning guns can be installed on the part counter for easy management of operations

Typical specifications

1.Power sourceAC110V/220V,50HZ

2.Count speed:  5000PCS /15minutes4mm pitch

3.Rated power:   30W

4.Count range:   From -99999 to 99999pcs

5.Machine measurement: L470*W300*H180  mm

6.Weight:         10kg

7.Applicative tape diameterevery type of SMD tape is ok

8.Pitch: 2,4,8,12,16,20,24,28,32,36,40,44,48,52,56mm mm

9.Applicative tape width: 8,12,16,24,32,44,56mm

10Packaging detailCarton and within foam plastics or wooden case.

Speed adjustment: Press theTIME/LOSSbutton to change the speed:H(high),M(middle),L(low).
